Yescom 6 ton Hydraulic Knockout Punch Press w/ 6 Piece Tool Kit
| 5.0 Site Review
Pickup available at LA01
Yescom 6 ton Hydraulic Knockout Punch Press w/ 6 Piece Tool Kit
$139.99
Frequent Bought Together
Description
Throw out those old wrench-style punches and upgrade with this Brand New Complete 6-Ton Hydraulic Punch Driver Kit, even tough material like 11-gauge steel will easily be pierced by this punch kit. It's great for installing and repairing wire pipeline, signal lamp and instrument in metallurgy, petrol, electronics, electrical appliance,chemical industry, ship & machinery and many more!
High Quality:
- Complete Punch Tools

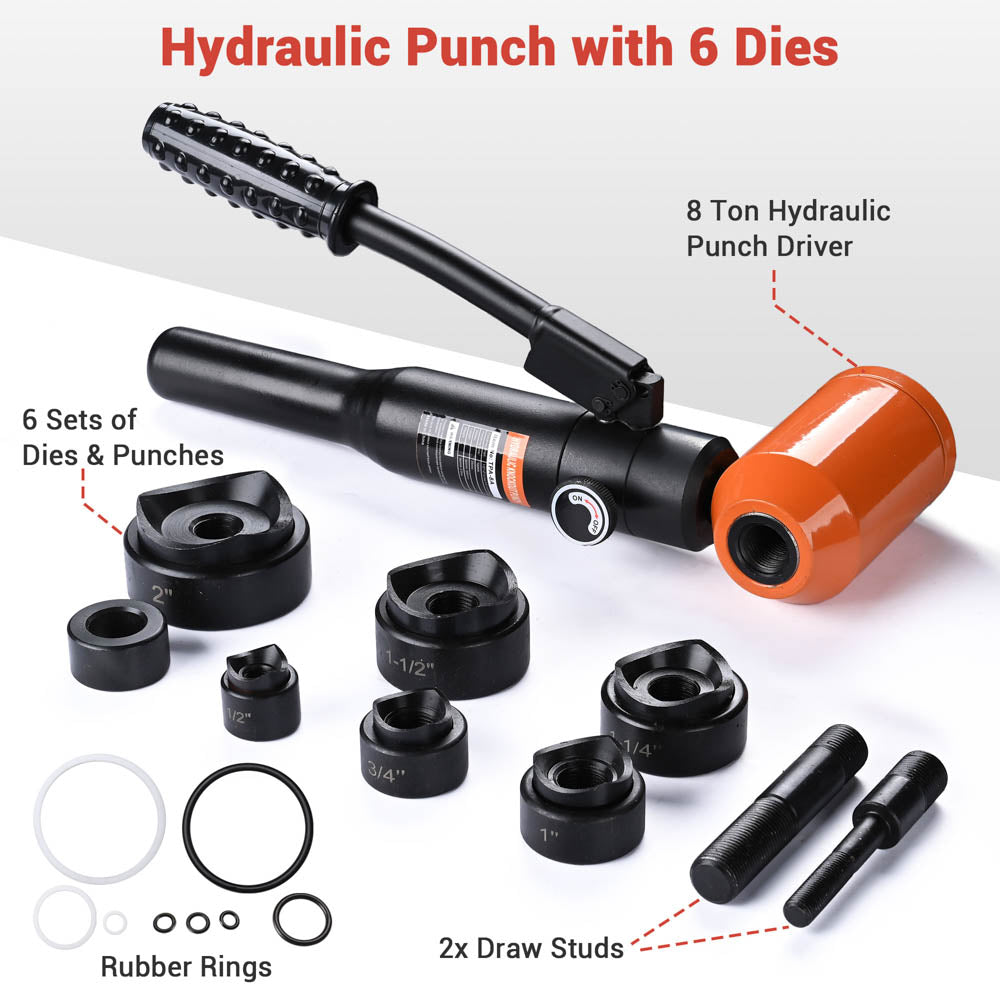

- Features 1pc 6-ton pump, 2pcs draw studs, 1 set of spacers and 6 sets of interchangeable dies & punches for conduit fitting size of 1/2", 3/4", 1", 1 1/4", 1 1/2" and 2", can drill different sizes holes on stainless steel, aluminum, steel, plastic, etc
- 1/8" (11 gauge) max punching thickness for steel and 1/16" (14 gauge) for stainless steel
- Efficient Hydraulic Design
- Hydraulic mechanism of the pump produces a strong force of 6T (59KN) for providing great punching accuracy and fast punching speed which is 10 times much faster than common wrenches

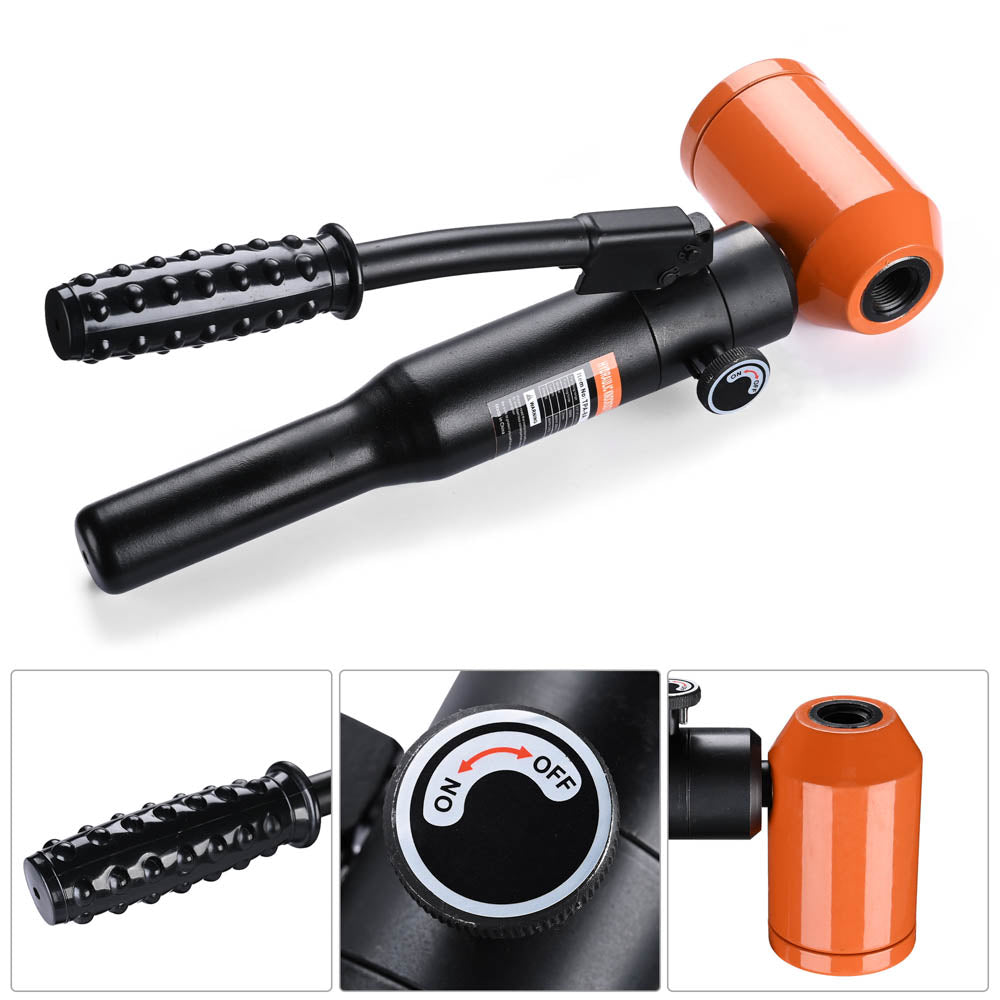

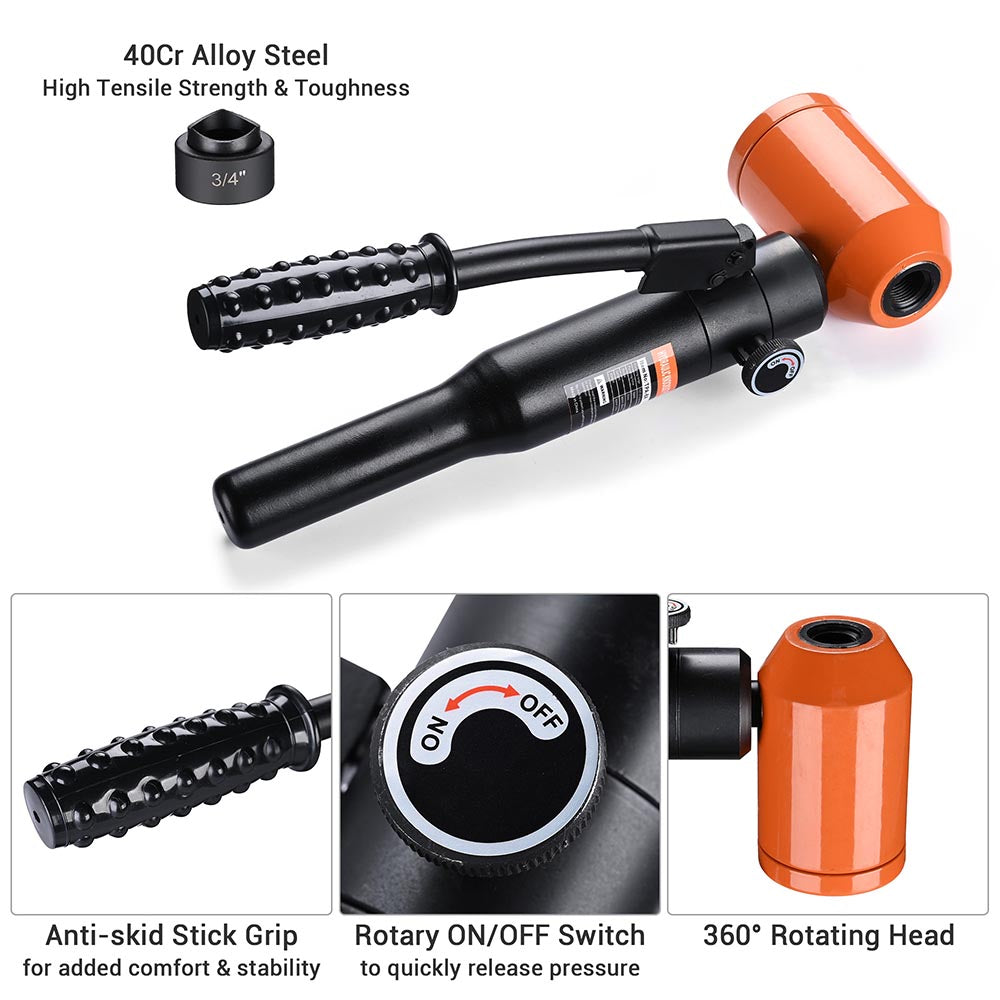

- Rotary "on/off " knob on the pump for quick releasing pressure, adding more safety
- 360 Degrees rotatable punch head for meeting your punching needs, you can adjust it flexibly
- Sturdy Metal Construction - 40Cr steel dies and aluminum alloy pump body for ensuring high strength, sturdiness and durability

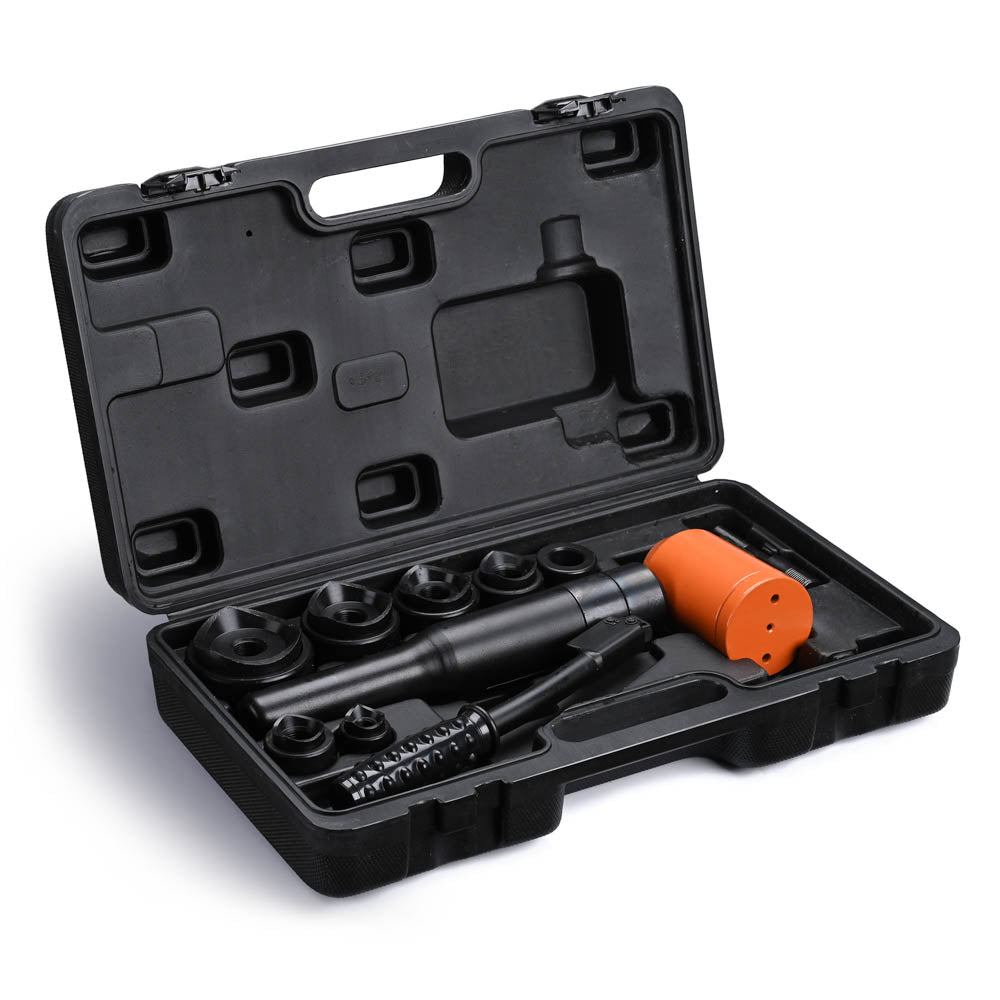

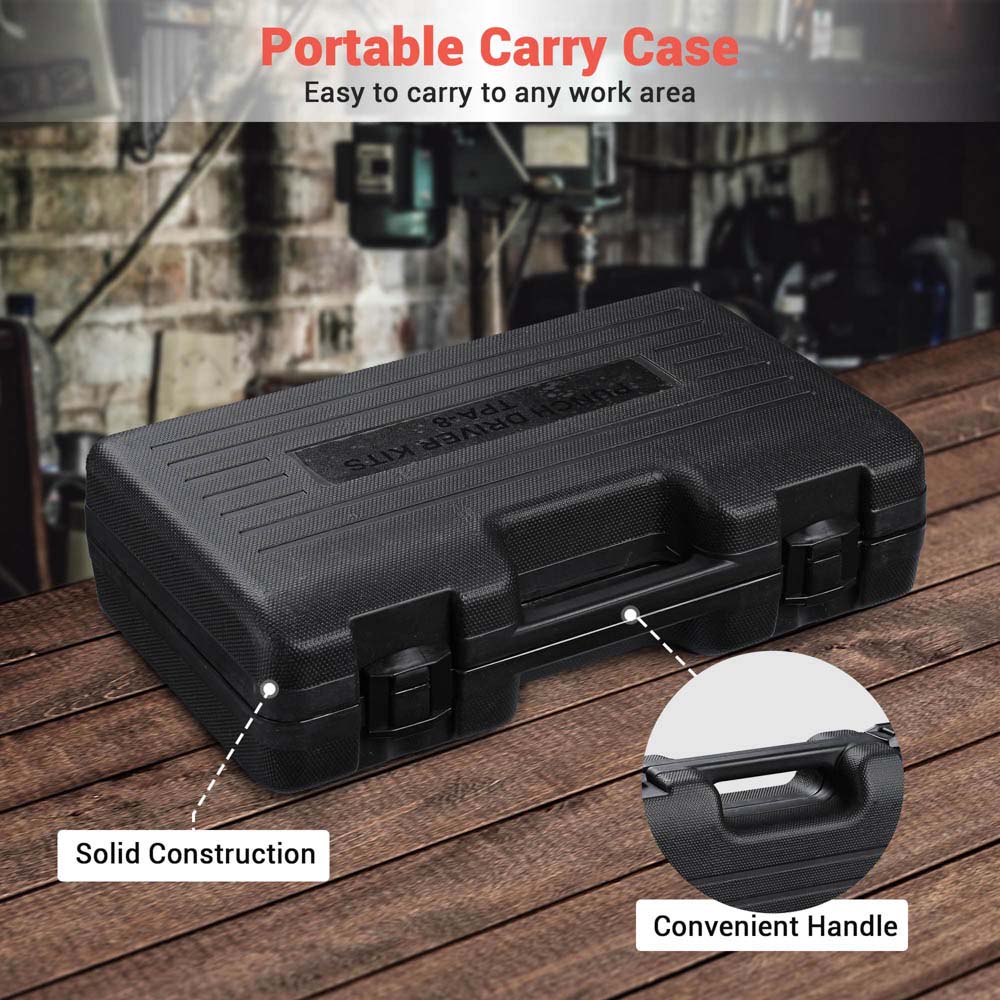

- Blow-molded case with handle for convenient storage and keeping all accessories in place

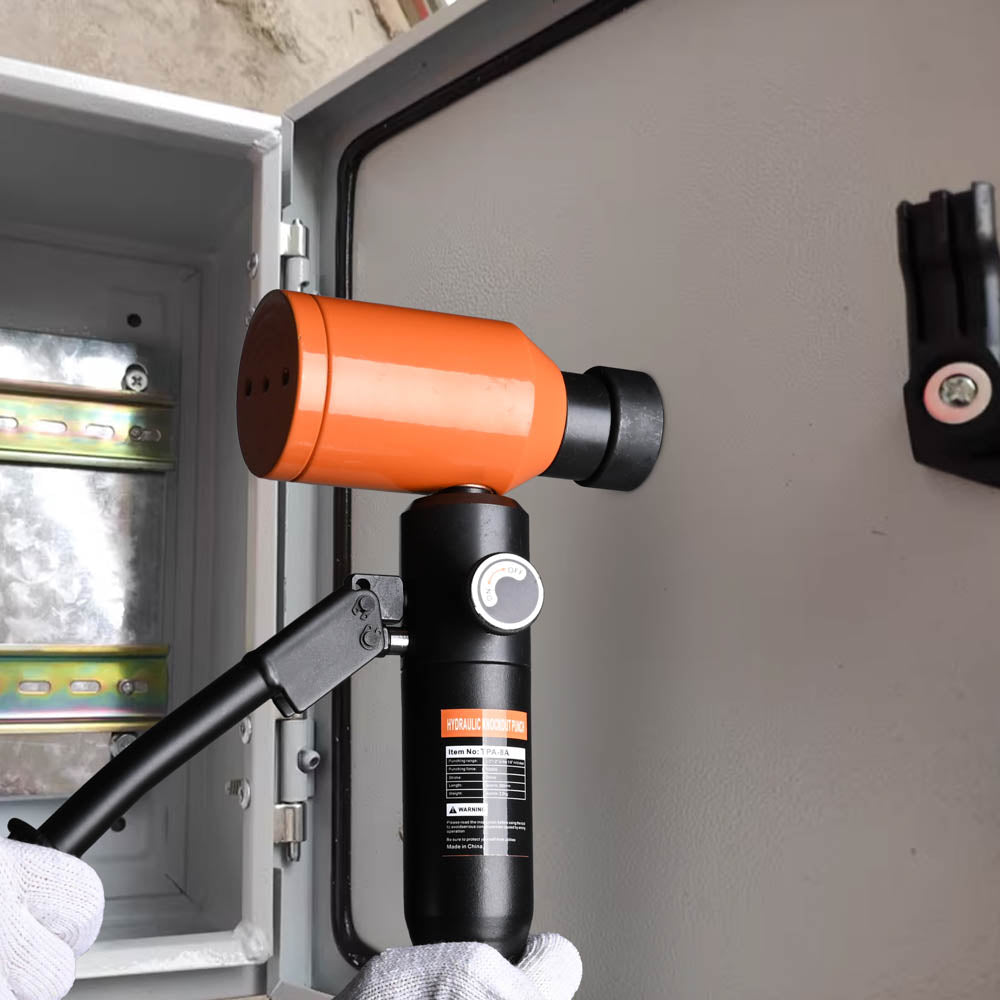

- Widely used on installing and repairing wire pipeline, signal lamp and instrument on construction sites, metallurgy, petrol, electronics, electrical appliance, chemical industry, ship and machinery, etc.
Product Details:

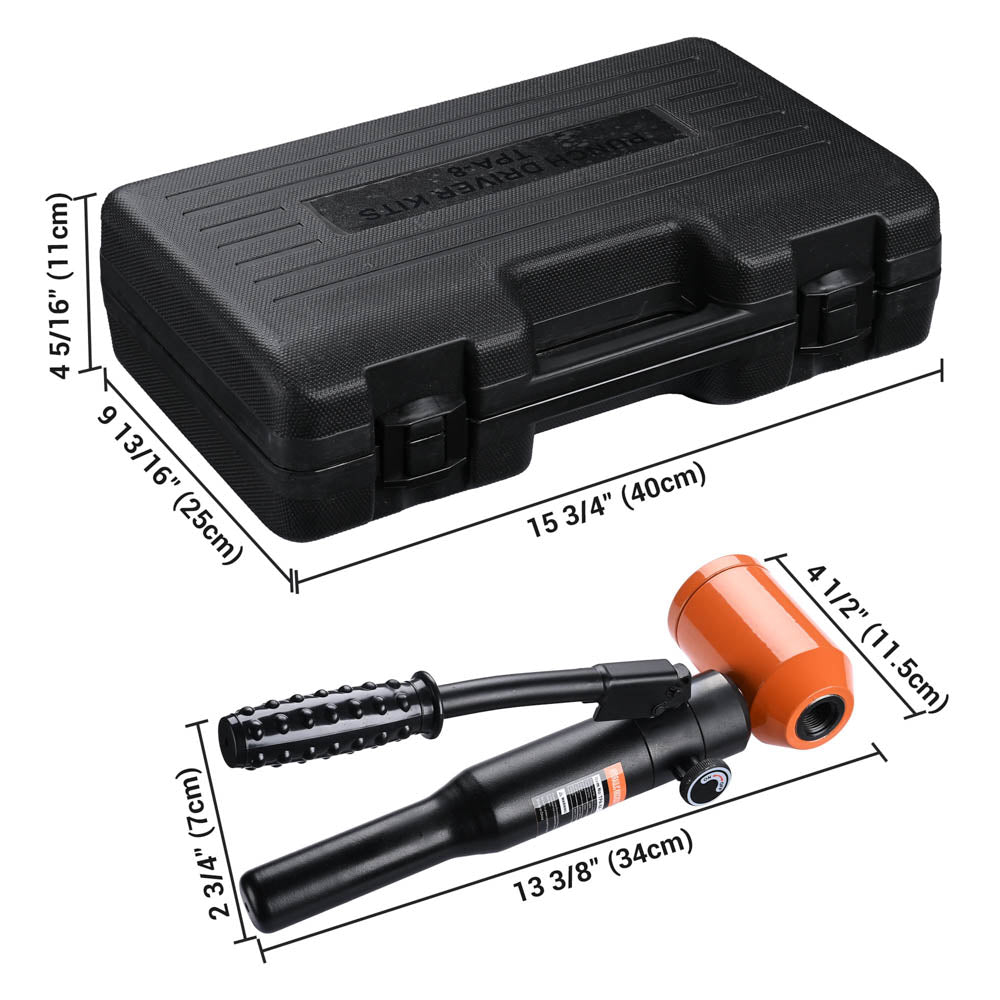

- Pump Dimension(LxWxH): 13 3/4" x 7 1/16" x 2 9/16" (35 x 18 x 6.5 cm)
- Extendable Handle Range: 2 3/8" to 8 11/16" (6 to 22 cm)
- Plastic Case Dimension(LxWxH): 16 1/8" x 9 13/16" x 4 5/16" (41 x 25 x 11 cm)

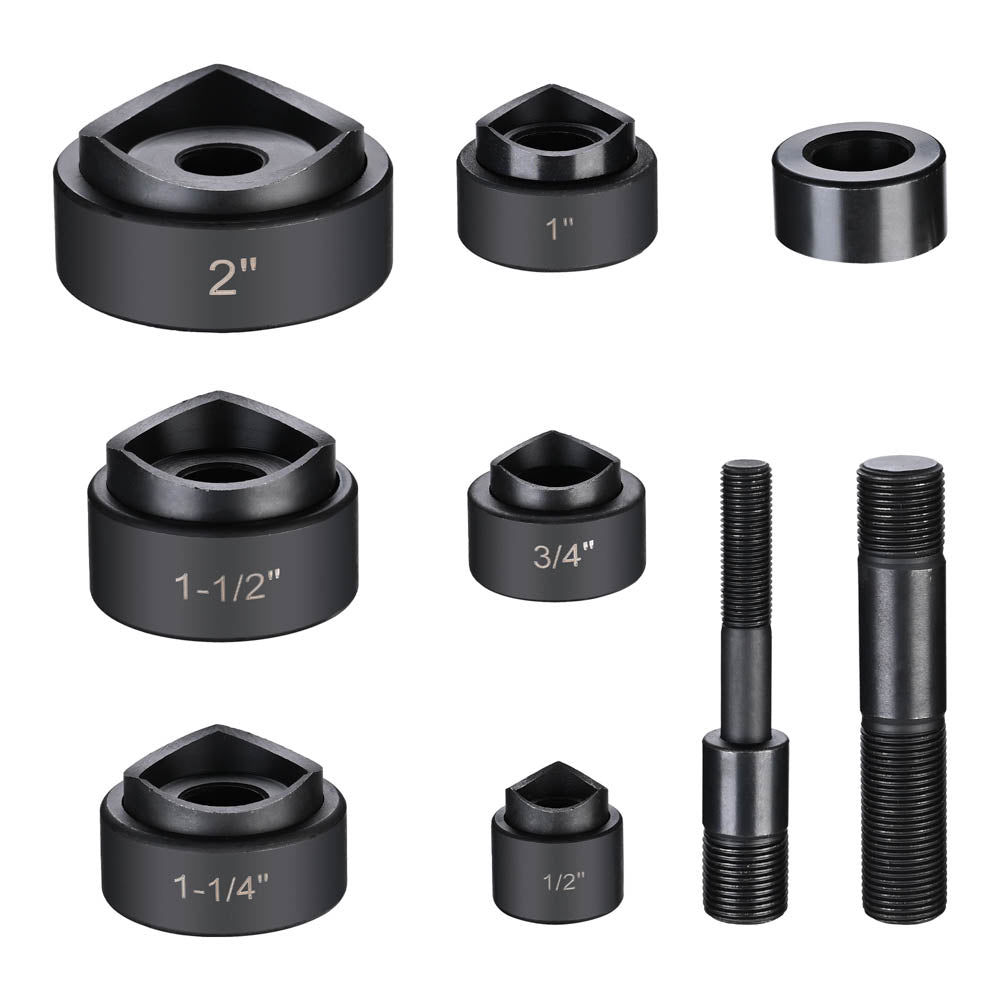

- 6 Punch Dies: 1/2"(22.5mm), 3/4"(28.3mm), 1"(34.6mm), 1 1/4"(43.2mm), 1 1/2"(49.6mm), 2"(61.5mm)
- Max Pressure: 6 ton
- Stroke: 7/8" (22 mm)
- Material: 45# Steel, Aluminum Alloy, 40Cr Steel
- Max Thickness for Steel: 1/8" (11 gauge)
- Max Thickness for Stainless Steel: 1/16" (14 gauge)
- Net Weight: 12.6 Lbs (5.7 kg)

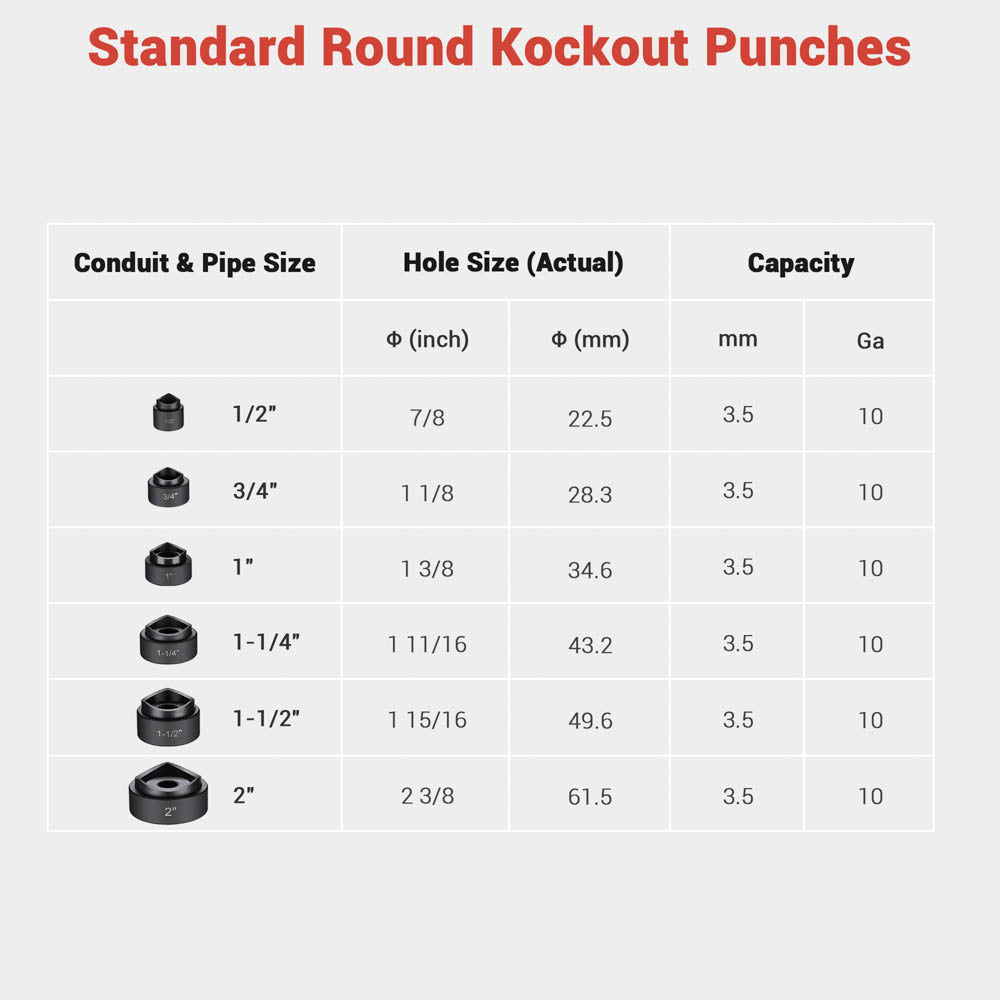

Corresponding Size:
|
Actual Hole Size
|
Dies & Punches Size
|
|
0.885" (22.5mm)
|
1/2"
|
|
1.115" (28.3mm)
|
3/4"
|
|
1.362" (34.6mm)
|
1"
|
|
1.701"(43.2mm)
|
1 1/4"
|
|
1.951"(49.6mm)
|
1 1/2" |
|
2.416"(61.5mm)
|
2"
|

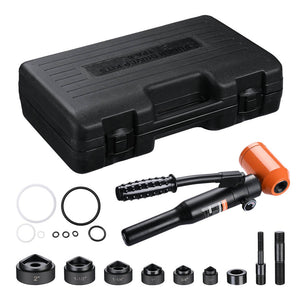

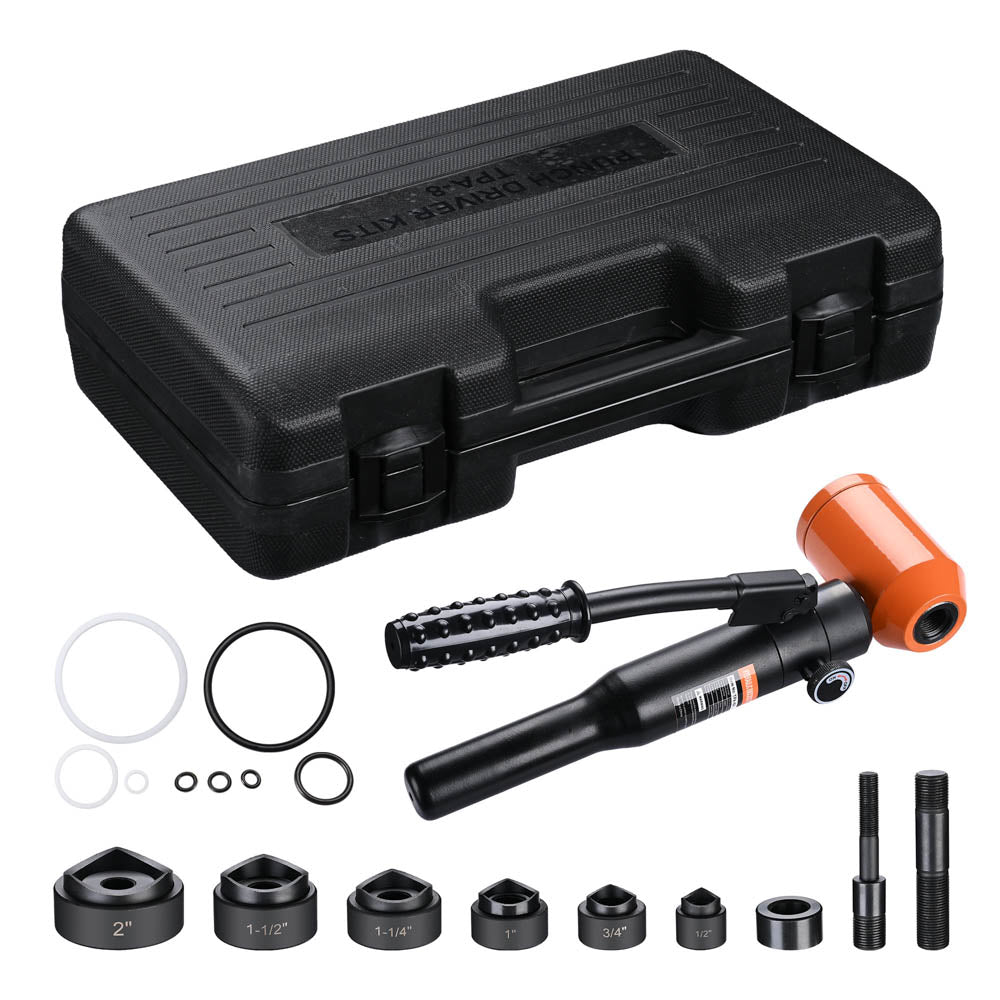

Also In The Box:
- 1 x 6-ton pump
- 6 Sets of Dies & Punches
- 2 x draw studs
- 1 Set of Spacer
- 1x Plastic Carrying Case
- 1x Manual
Notice: Do Not operate the pump after ram motion stops. Continuing to operate the pump lever after the ram stops will damage the ram
