Yescom Bicycle Motor Kit Conversion Engine Rear 1500W 48V 26in

Yescom Bicycle Motor Kit Conversion Engine Rear 1500W 48V 26in

| 5.0 Site Review

$259.79

Enroll your businessGet up to 15% OFF after double opt-in.

15% OFF

ON ORDER $149

Shop Now

Pickup available at LA01

LA01

Pickup available, usually ready in 2 hours

185 N. Sunset Ave
City Of Industry CA 91744
United States

+18888239222

Check this on google map

Arrives by Thu, Dec 26 Ships free

Yescom Bicycle Motor Kit Conversion Engine Rear 1500W 48V 26in

$259.79

Frequent Bought Together

Yescom Bicycle Motor Kit Conversion Engine Rear...

$259.79

Yescom 16ft Triangle Shade Sail Water Resist fo...

$39.79

Total price: $299.58

Description
Video
Accessory
Product FAQ
Wholesale Inquiry

Description

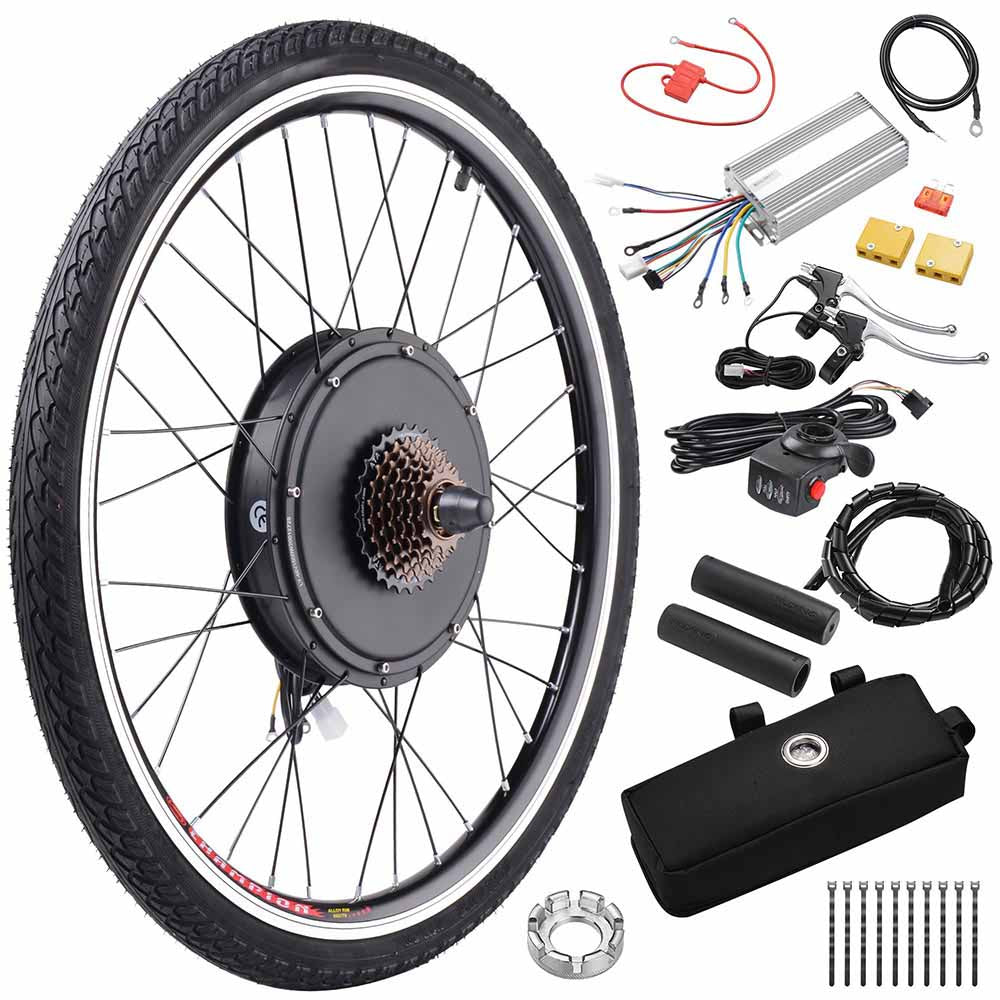

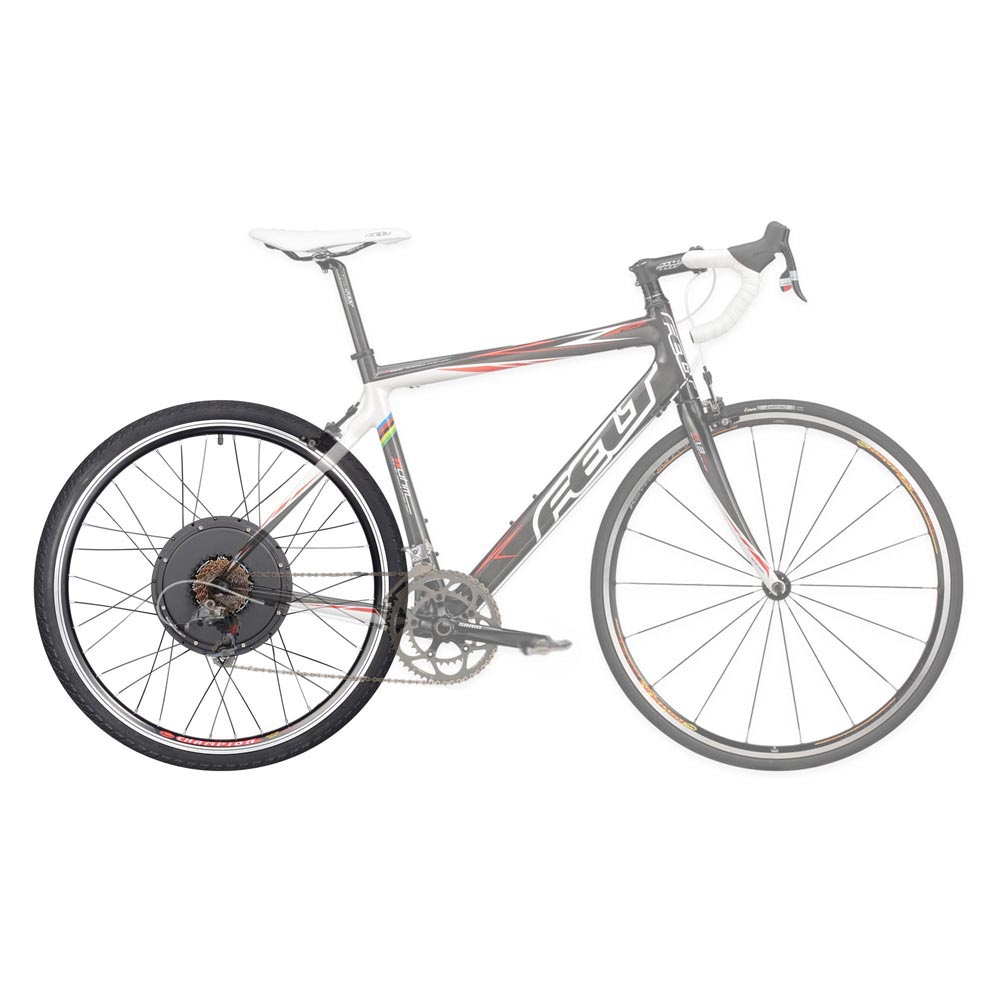

1500W 48V 26" Electric Bicycle Rear Hub Conversion Kit, with firm and durable aluminum alloy frame and dual mode controller, can be used to transform your bicycle into an electric power moped for effortless riding. Fit for 5 5/16" rear dropout spacing. Suitable for mountain bikes, road bikes, cruise bike

Powerful Motor - 1500W 48V brushless gearless rear hub motor fast accelerates the speed up to 34 mile/h, brushless hub motor for noiseless running
Dual Mode Controller - Motor works under Hall effect and non-Hall effect, extend life for electric bicycle (If the components break down, controller will switch into non-hall effect mode, the motor will still be working)
High Safety - Hand brakes shut off the motor instantly to improve safety; Disc brake at the center of rear wheel provides superior stopping power especially in wet conditions
Convenient to Use - Thumb throttle with battery monitor makes speed control as a breeze
Durable - Aluminum alloy frame for durability and stability, better resisting rust and corrosion, supports loads up to 331 Lbs; CE certificated for quality assurance

Product Details:

Overall Dimension(Dia.xW): 25 13/16" x 1 3/4" (65.5 x 4.45 cm)
Axle Length: 8 1/16" (20.5 cm)
Rear Dropout Spacing: 5 5/16" (13.5 cm)
Spokes Length: 6 5/16" (16 cm)
Controller Size: 8 1/4" x 4 1/8" x 1 15/16" (21 x 10.5 x 5 cm)
The Number of Spokes: 36
Controller: 1500W, 35 A
Motor Power: 1500 W, 48V
Suitable Battery Type and Parameters: 48v20AH, about 40KM of travel.
Load Capacity: 331 Lbs (150 kg)
Net Weight: 24 Lbs (11 kg)

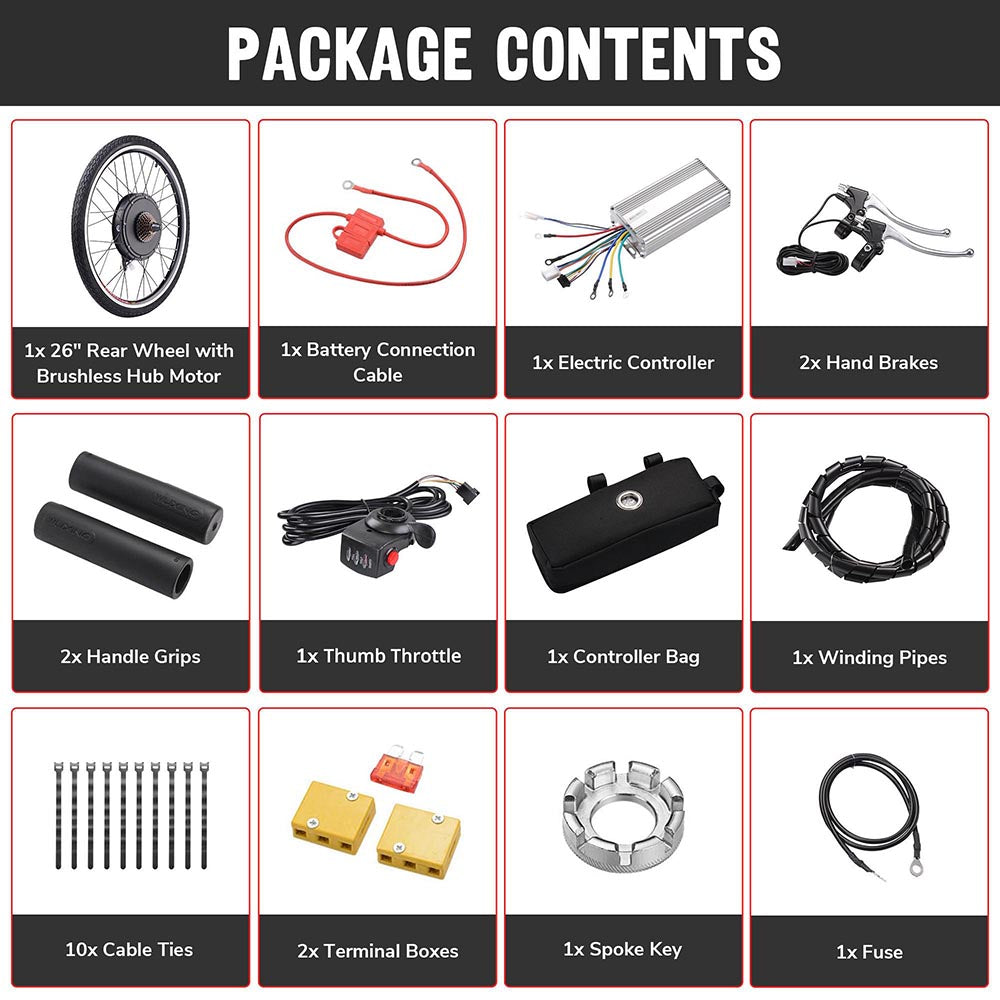

Also In The Box:

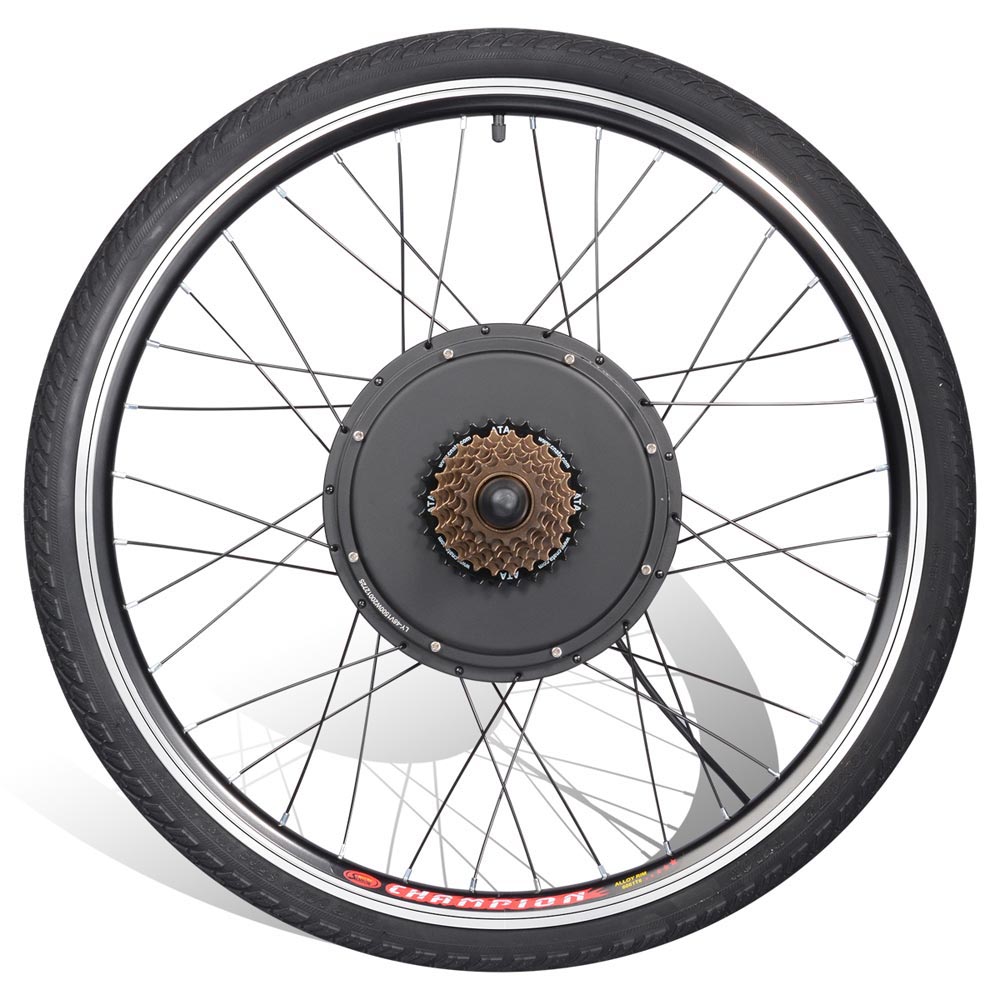

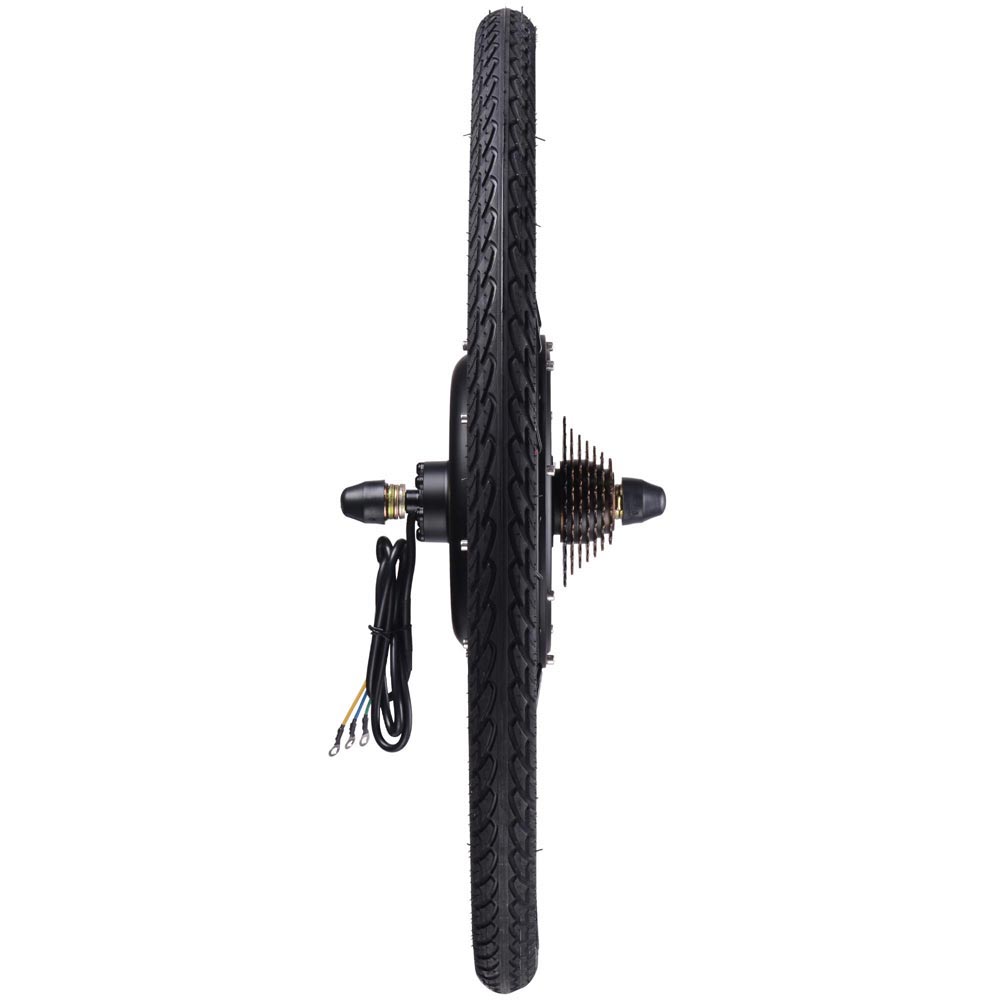

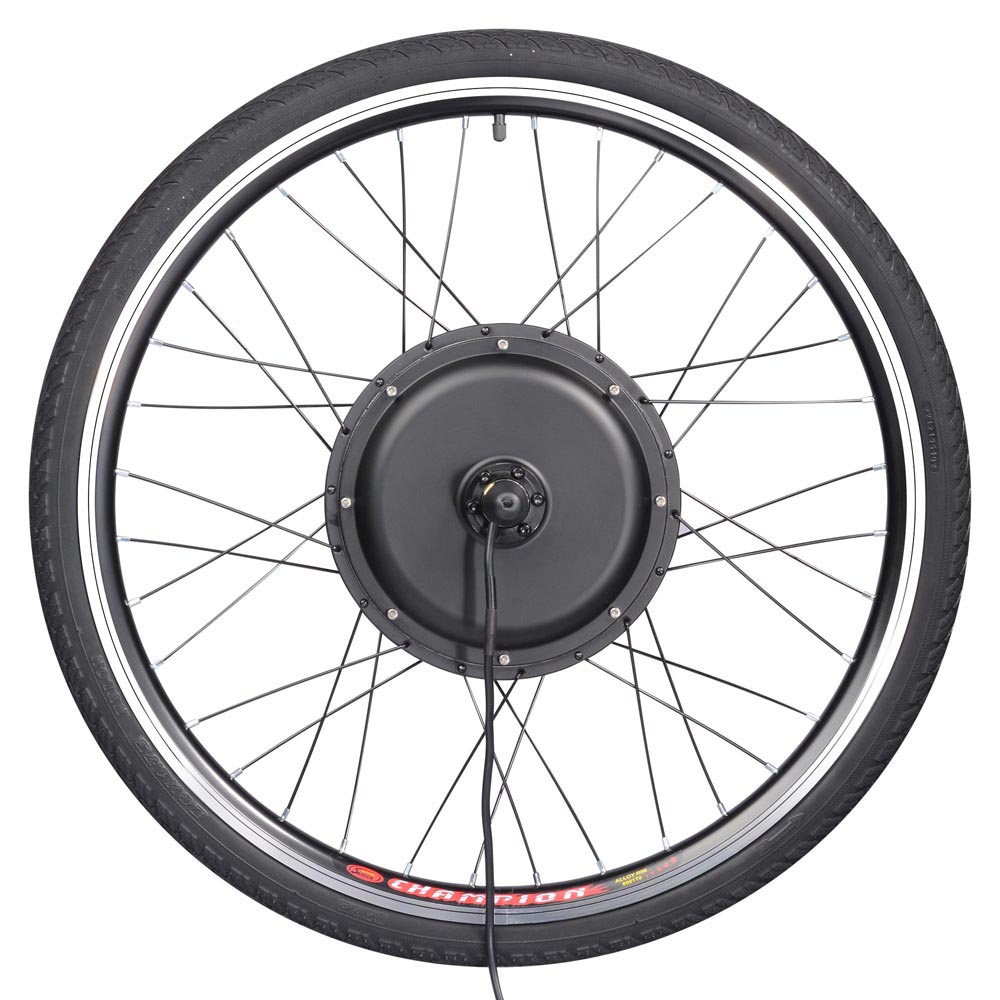

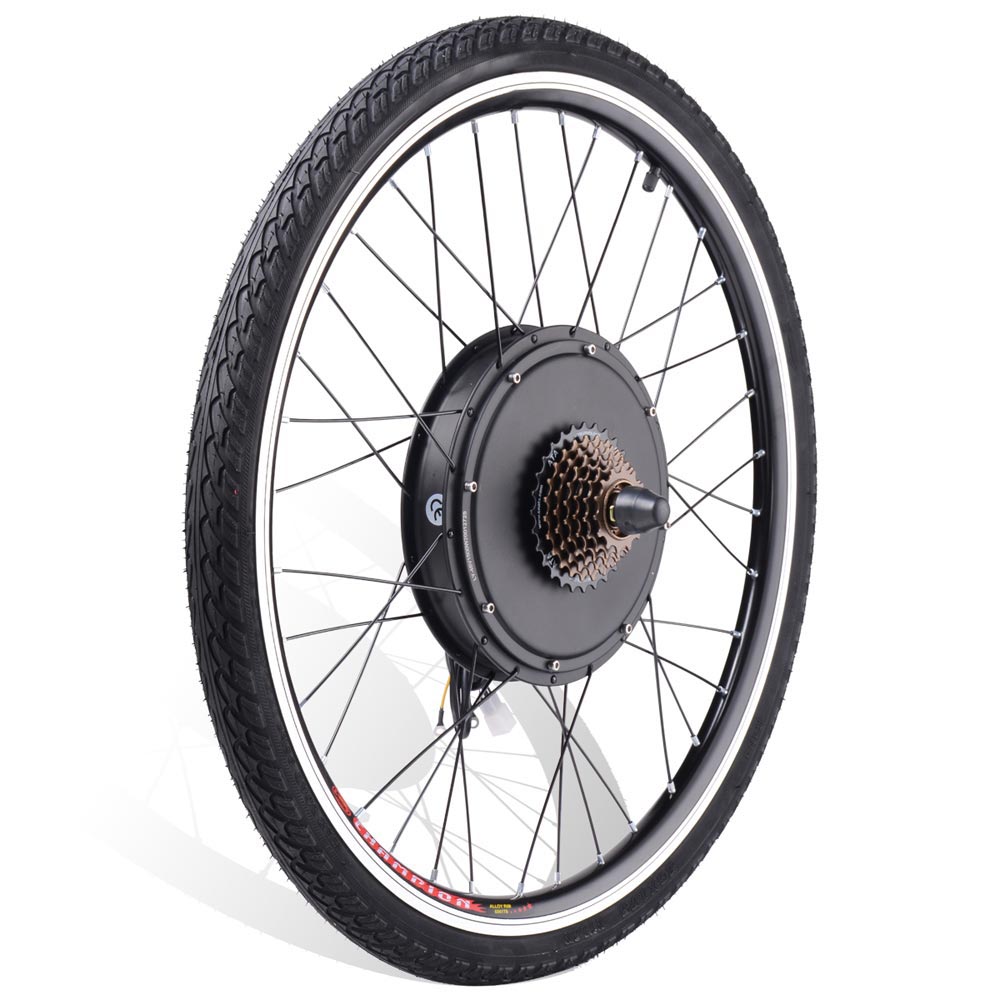

1x 26" Rear Wheel with Brushless Hub Motor
1x Battery Connection Cable
1x Electric Controller
2x Hand Brakes
2x Handle Grips
1x Thumb Throttle

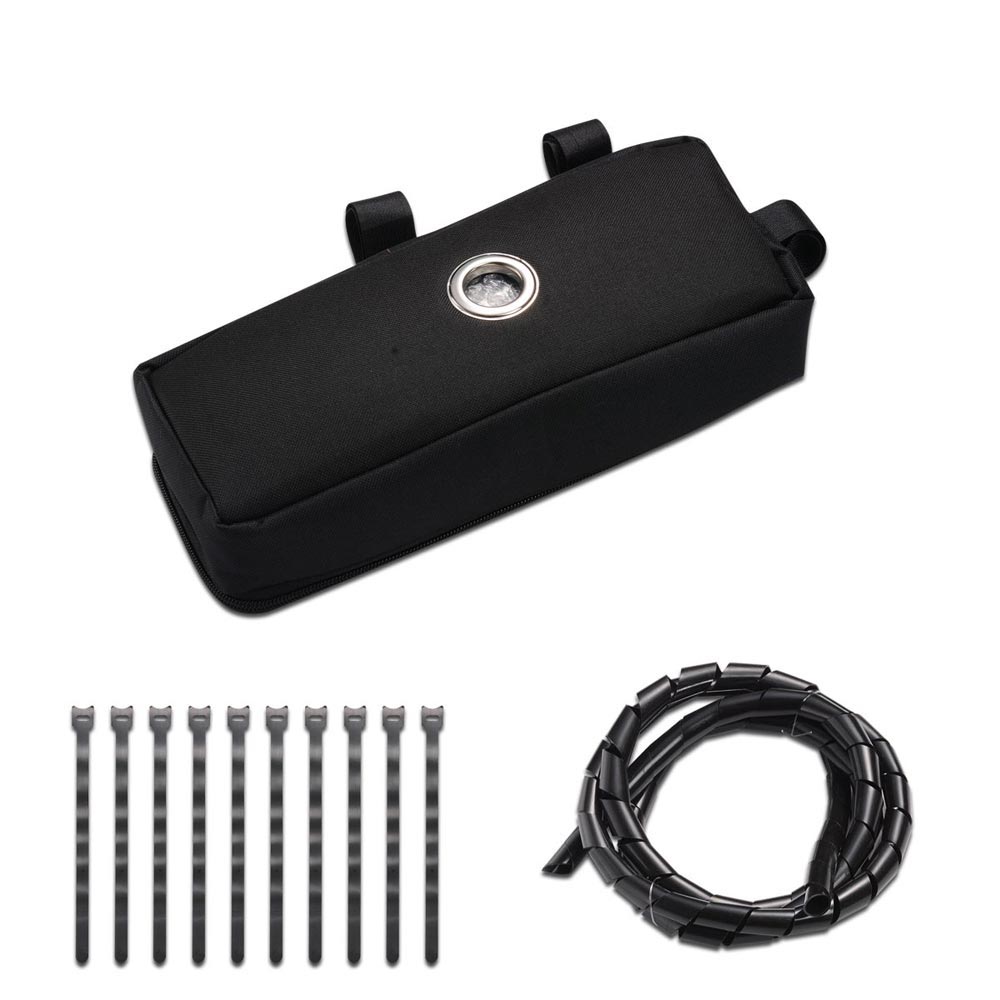

1x Controller Bag
1x Set of Winding Pipe and Cable Ties
2x Terminal Boxes
1x Spare Fuse
1x Manual

Notice:

Battery and charger are Not Included.
Please make sure that you wear a helmet before riding this electric bicycle for protection.
Please go to those automobile repair shop with standard business license for modification.
Please don't use when it is raining.
This product is only suitable for conventional bicycle, not for tricycles, tractors, etc.

Video

There is not a video available for this product.

Accessory

Product FAQ

Can I install Yescom Electric Bicycle Motor Conversion Kit on tandem bike?

The short answer is No. If you install the Electric Bicycle Motor Conversion Kit on a tandem bike, the weight of 2 riders may exceed the weight capacity of the electric wheel.
Even if the weight of 2 people is still within the weight capacity, we do not recommend installing it on a tandem bike, since it is a safety hazard to have only one person control the speed. Only install the Electric Bicycle Motor Conversion Kit on a single seat, 2-wheel conventional bicycle.

Can you still use the Electric Bicycle if turn the motor off?

The simple answer is Yes. If you turn off the motor, or your battery is dead, you can still pedal your electric bicycle like you would a regular bicycle. Please note, however, that the additional weight of the e bike motor, battery and accessories will make your bike heavier, so it will be more difficult to pedal manually.

Can you ride Electric Bicycle in the rain?

Although the connectors on our motors are water resistant, riding an electric bicycle in the rain is not recommended as there are numerous risks involved. Moisture may still get inside the motor or your battery and may damage them. Any damage caused by water is not covered by our warranty. You also risk slipping or hydroplaning while riding and higher speeds, which can cause serious injury.

How to achieve the maximum speed displayed on advertisements

The maximum speed advertised is achieved when the battery is fully charged. Therefore, it is recommended to use the recommended battery parameters. The speed of cycling is influenced by many factors, such as payload, battery level, wind resistance, etc., so this speed is only for your reference. The specific speed that can be achieved depends on the actual situation.

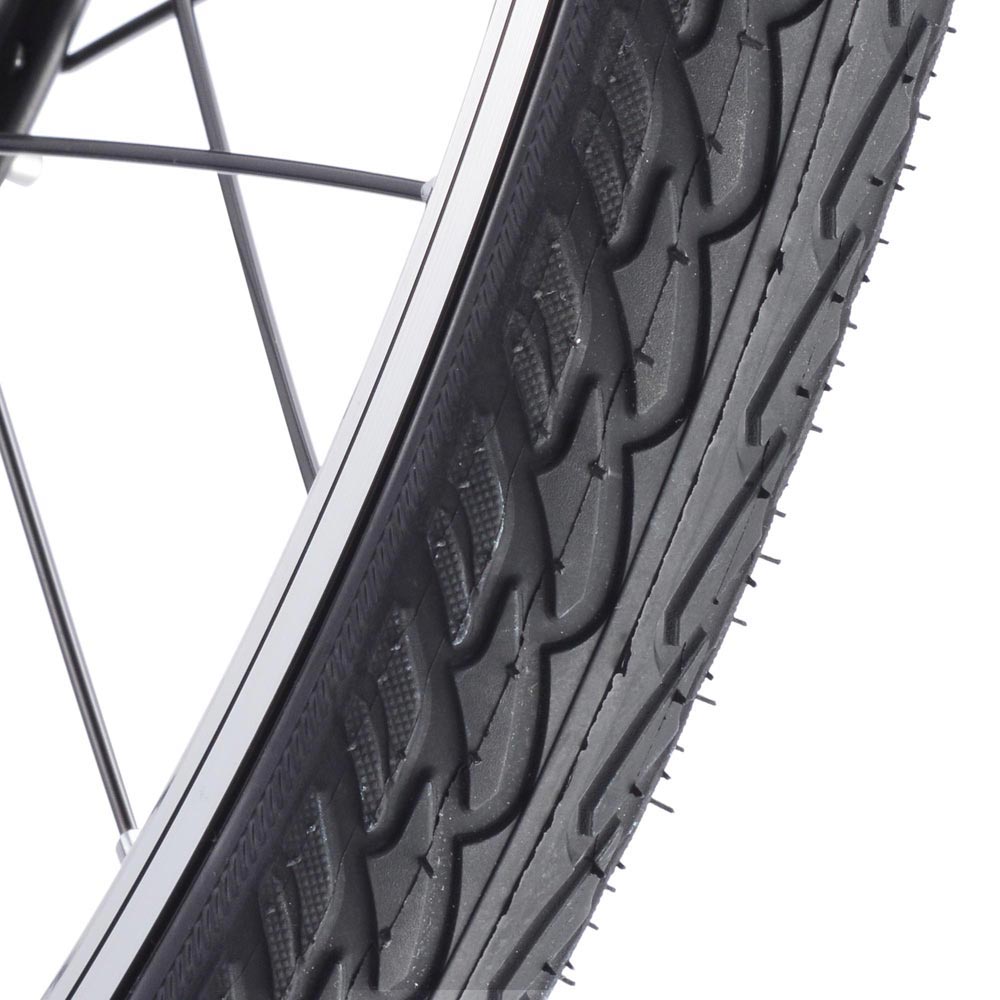

Is the tire included in the 1500W 48V 26in Conversion kit?

Yes the tier is included, you do not need to buy the tire separately. If you would like to change the tire, you can easily take off the tire and change it for another tire with the same size.

What should I do if I still need to shift gear one the ebike?

Since attached brake levers are required to be used on the ebike compulsorily and it does not come with gear shifters, if you still need the gear system on your ebike, you may need another individual gear shifter set (7 gears). All you have to do is remove the gear system from the original brake lever and reconnect it to the new gear shifter set. Brake system and gear system should be separated on the ebike. We recommend you go to automobile repair shops with standard business license for help if you are not fimilar with DIY bike and ebike.

What is the difference between the front kit and the rear kit?/ Which one is better? Can I install front kit on rear wheel?

Front (Rear) kit is the one that motor is on the front (rear) wheel, motor generates power to drive the bike forward. We also have attached 2 photos of our 26in 48v 1000w Electric Bicycle Motor below for reference, the left one with gears is rear kit, as the right one is front kit.
Adension on the rear wheel increases as the center of gravity of the bike moves backwards when accelerating, rear kit has more efficient acceleration and stability. If you mainly use manpower and need power assistance while riding, or you don't want to change the rear wheel or brake system of the bike, front kit is able to satisfy your needs. Generally, rear kit is the better one.
We do not recommend you install the front kit on rear wheel, please only install front kit on front wheel, rear kit on rear wheel.

Ebike: How to install a brake disc?/ What sizes of brake disc fit our conversion kits?

Remove 6 hexalobular internal screws (star socket screws) on the hub first (refer to pic), then align 6 bolt rotors on the brake disc to 6 screw holes on the hub and retighten 6 screws back. All sizes brake disc (mostly 140mm, 160mm, 180mm and 203mm) are compatible with the hub of all our conversion kits. Please select proper sizes of brake disc according to the spacing between the hub and fork. Choosing the sizes also depends on how the heat transfer is taking place from the disc to provide the best possible heat dissipation to avoid the disc to wear out. Bigger brake discs have better heat dissipation.

Ebike: Does the battery charge when the wheel spins freely/ brakes?

No, there is no Energy Recycle System for our conversion kits. Energy would not be recharged to the battery by spinning or braking.

Ebike: Unknow noise from the motor wheel.

1. Please lift the bike so wheels are off the ground, spin the wheel with hands (power off) to check if noise exists. If so, noise could come from contacting between the frame of bike and the wheel. Please check if something wrong on the wheel or frame of bike. Also, please check brake systems on the wheel and frame of bike (e.g. the gap between brake disc and cliper). As well as the spokes.
2. Please unplug the connection of the controller and motor and replug it again to have a try. Please make sure the connectors and pins are clear, each connector is inserted in another to required position (the "'" sign).
3. Please try to run the wheel (make sure the bike is off ground) with throttle to check if the noise occurs. If so, please take a video of this situation (noise includes) and provide our constomer service with it so we can verify the issue quickly and provide a proper resolution.

Is there a fuse for the controller and the battery?

Yes there is a fuse on the red extension which is included in the package. The main purpose of the fuse is to provide a overcurrent protection, when the battery is unstable, which may cause the current or voltage in the circuit too high, it will burn the fuse to power off the electric bicycle. If without a fuse, constant overcurrnt may cause serious damages to the kit and even cause a fire.

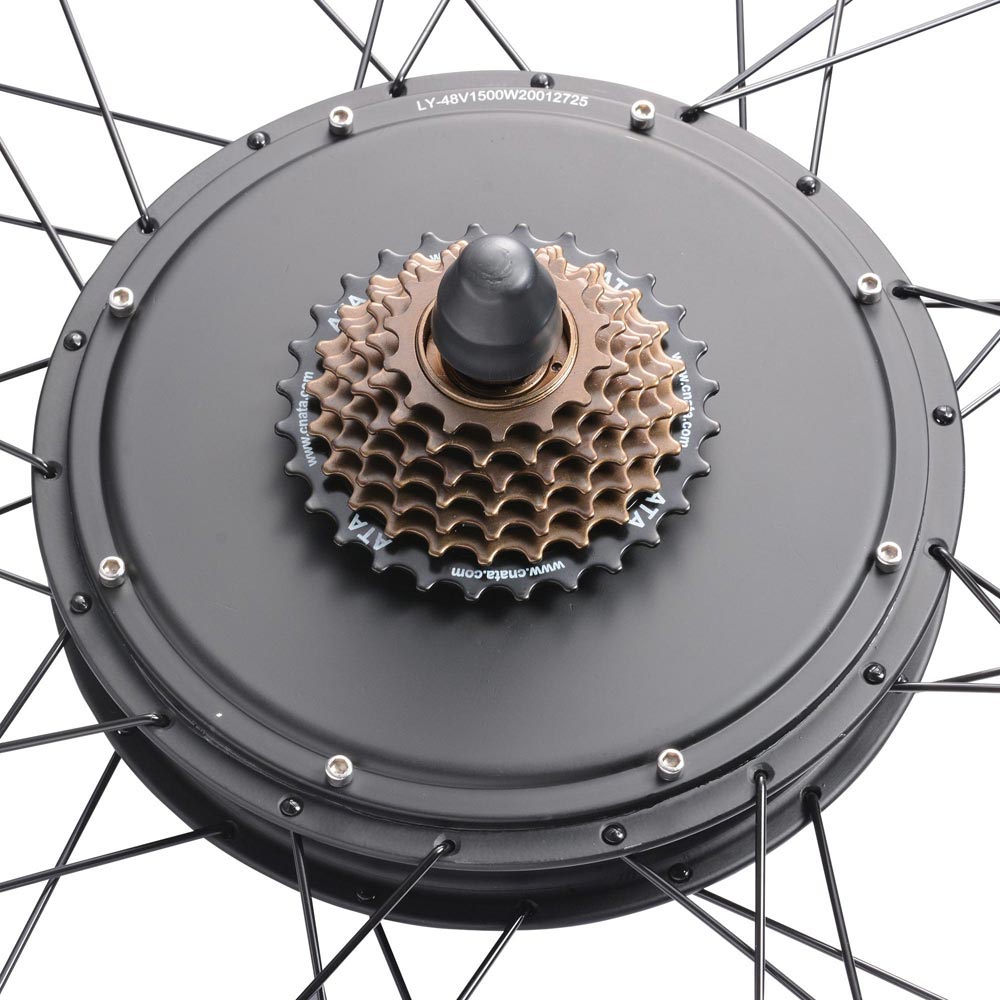

Is the hub of the conversion kit direct drive and gearless?

Yes the motor is a gearless and Direct Drive motor so there is no need to shift. Compared to geared motor, direct-drive motors are capable of higher top speeds on a flat road, so if you live in a flat area and would like to get a more powerful, quieter and faster conversion kit, a direct drive motor would be the best option. Introduction of ebike motor: direct drive vs geared motor:Electric bike motors primarily come in two varieties: direct drive vs geared motor. Direct drive motors or direct-drive hub motors are large, gearless hub motors that use magnetic force inside a copper winding coil to conduct power through the motor, while geared motors or geared hub motors function via a set of planetary gears (or Planetary Gear Reduction System) that control speed. Pros and Cons:Both have their advantages, mostly concerning weight, battery efficiency, and overall horsepower. A direct drive motor offers a quiet ride with higher top speeds.Geared motors provide longer rides per charge and more torque, suitable for climbing hills and riding on varying terrains.Direct drive motors are large and heavy and are harder to foot pedal with, while geared motors are small and easier to pedal without power, but are far noisier.Geared motors don't last as long as direct drive motors.

Can change parameter or setting of LCD or conversion kit for djustment I want?

Please kindly note that the LCD and controller are the brain of each conversion kit which comes with it, so any parameter or setting of it affects riding. For safety consideration, we do not offer any instruction on adjusting parameter or setting of the LCD or conversion kit. And we do not suggest any unecessarily clicking on the LCD to avoid parameter and setting being changed. All our conversion kits are for daily commuting and please ride the ebike under local legislation. Speed limit and overload setting are not allowed as well.

Electric Bicycle Conversion Kit: Can I paint the hub to match the frame of my bike?

Yes you can paint the hub if you want it to match the frame of your bike. But please keep in mind that you need to cover the wire connections with something properly, just to make sure the paint will not spray into the wire connections. As it takes some work, we recommend you send the kit to a local auto shop to have them painted it, the man at the shop will be more professional in painting a hub.

Can you install the Electric Bicycle Conversion Kit for me at an extra cost?

We do not offer assembly service for the Electric Bicycle Conversion Kit, but we provide step by step instruction and you can follow our instruction to install the Conversion Kit. If you still do not know how to install it after looking at the instruction, you can take it to your local automobile repair shop and pay for a assembly service to let the technician install it for you, the cost depends upon your locality.

Do I have to get a battery for Yescom Electric Bicycle Motor Conversion Kit separately? Where should I buy the battery?

We no longer carry batteries for our Electric Bicycle Motor Conversion Kit , so you may need to buy a battery separately. You can order batteries through Amazon or other sites, or you can buy one from a local shop. When choosing a battery, please make sure buy a battery that meets the recommended specifications. There are specific voltage and amp requirements for the bike to function properly, higher or lower volts or amps could cause the conversion kit to be inoperable.
Different Electric Bicycle Motor Conversion Kits require different batteries:
For our 48v 1000w Electric Bicycle kit, which comes with a thumb throttle (YES1527 or YES1528), an electrokinetic cell battery ( Li, lead-acid, NiMH battery etc.) featured in nominal voltage 48v, nominal capacity in the range of 17 to 20Ah is compatible with the motor.
For our 48v 1000w Electric Bicycle kit, which comes with a LCD, PAS system and Speed throttle (YES2463), an electro kinetic cell battery ( Li, lead-acid, NiMH battery etc.) featured in nominal voltage 48v, nominal capacity 17 to 20Ah is compatible with the motor.
For our 48v 1000w Electric Bicycle kit, which comes with a Fat wheel, PAS system and Speed throttle (YES3510), the suitable battery type and parameters are: 48V, 30A, recommended capacity is at least 8.8AH or above. Will travel about 12.5 mi.
For our 48V 1500W Electric Bicycle kit, which comes with a thumb throttle (YES2468), the suitable battery type and parameters are: 48V, 35A, recommended capacity is 20AH. Will travel about 24.8 mi (40Km).
For our 36V 750w Electric Bicycle kit, which comes with a thumb throttle (20'' wheel: YES3511 or 24'' wheel: YES3512), the suitable battery type and parameters are: 36V, 25A, recommended capacity is at least 8.8AH or above. Will travel about 12.5 mi (20Km).

Ebike: Can I use hydraulic brake system?/ What kinds of brake system can be used?/ Is it necessary to use attached brake levers?

Our conversion kits require to deprecate original brake levers as only attached ones can power off with the controller while braking. So please refit the connection of original brake levers to attached ones. If you use hydraulic brake system, please switch to linear brake system which is the one we recommend for our conversion kits. Hydraulic brake system is incompatible with our conversion kits.

Can I install Yescom Electric Bicycle Motor Conversion Kit on tricycles?

The electric bicycle kit is only compatible with conventional bicycles. We do NOT recommend installing the electric bicycle kit on tricycles. There are 3 main reasons why it is not suitable for tricycles.
1. The front forks of a tricycle are different than conventional bikes, and you cannot install the electric wheel properly with an incompatible front fork. This may cause the electric wheel to slip out of the fork while you are riding, resulting in serious injury.
2. The size of the crank axle in a tricycle is different than a conventional bicycle. For our electric kits that contain a PAS system, you may not be able to install the PAS system. Even if you can install it, it may not function properly.
3. A tricycle weighs more than a bike and is often used to carry or pull things. This may exceed the load capacity of our electric kits and cause serious damage to the motor. It will shorten the life of the electric kit.

Do your Electric Bicycle Motor kit has hill climbing abilities?

There are different E-bike motor kits available for different types of riding. Some provide greater power, more torque, and better control, so they are more suitable for all-terrain or mountainous regions. Others, however, have less power and limited torque, so they are more suitable to use on flat land. It is important to know where and how you will be using your E-bike so that you purchase the correct kit. Our Electric Bicycle Motor kits are more suited for recreational riding, and we recommend using it on flat and smooth land. If you want to use it to climb smaller hills, make sure the maximum slope of the hill is no greater than 12 degrees. If the hill is steep (more than 12 degrees), it may overload the motor, resulting in the motor and controller starting the power-off protection and cut off the power.

Can the speed limiter be removed from Yescom Electric Bicycle Motor Conversion Kit?

Electric bicycles normally come with a speed limiter, which is usually on the contorller. We understand that you want to remove the speed limiter to enjoy the electric bicycle's full speed, however, we do not recommend you remove the speed limiter. Doing so is illegal and dangerous. An electric bike's speed limiter is designed to follow a country or region's biking or speed laws. In the US, the allowed electric bicycle top speed is 20 mph. A speed limiter makes sure you do not go over the allowed speed limit, making highways and busy roads safer. It also helps your e bike motor and battery last longer, by not overloading them.

Does it contain a LCD? If not, how do I know the riding speed and the battery life?

Unfortunately this e-bike kit does not contain a LCD display. If you would like to know how fast you are riding, you can add a separate wireless speedometer or GPS Unit to monitor the riding speed. They can be found on Amazon or eBay easily. If you would like to know when do you need to charge the battery, you can determine it by looking at the indicator light on the Thumb Throttle. There are 3 indicators lights: empty, half and full. When you see the empty light comes on, that means you need to charge the battery.

What is the torque rating of this e-bike? How much torque is good enough?

We have several e-bike kits and different kit has different torque rating. Higher torque rating means a better ability to keep turning the wheel. Generally if you live in flat area and do not go up hill often, an e-bike with around 50nm torque rating is good enough, you can use it for commuting or other casual riding. Product IDTitleTorque ratingYES1449/YES24671500W 48V 26"x 4'' Conversion Kit with LCD & PAS55 NmYES24681500W 48V 26'' Conversion Kit without LCD & PAS55 NmYES2464/YES24631000w 48v 26''x 1.75" Conversion Kit with LCD & PAS60 NmYES1527/YES15281000w 48v 26'' x 1.75" Conversion Kit Without LCD & PAS45 NmYES35101000w 48v 26" x 4" conversion Kit60 NmYES35091000w 48v 20'' Conversion Kit60 NmYES351236v 750w 24'' Conversion Kit50 NmYES351136v 750w 20'' Conversion Kit50 Nm
