Yescom 10 Ton Hydraulic Punch Press w/ 6 Piece Tool Kit Yellow
| 5.0 Site Review
Pickup available at LA01
Yescom 10 Ton Hydraulic Punch Press w/ 6 Piece Tool Kit Yellow
$84.79
Frequent Bought Together
Description
Throw out those old wrench-style punches and upgrade with this Brand New Complete 10-Ton Hydraulic Punch Driver Kit, even tough material like 11-gauge steel will easily be pierced by this punch kit. It's great for installing and repairing wire pipeline, signal lamp and instrument in metallurgy, petrol, electronics, electrical appliance,chemical industry, ship & machinery and many more!
High Quality:

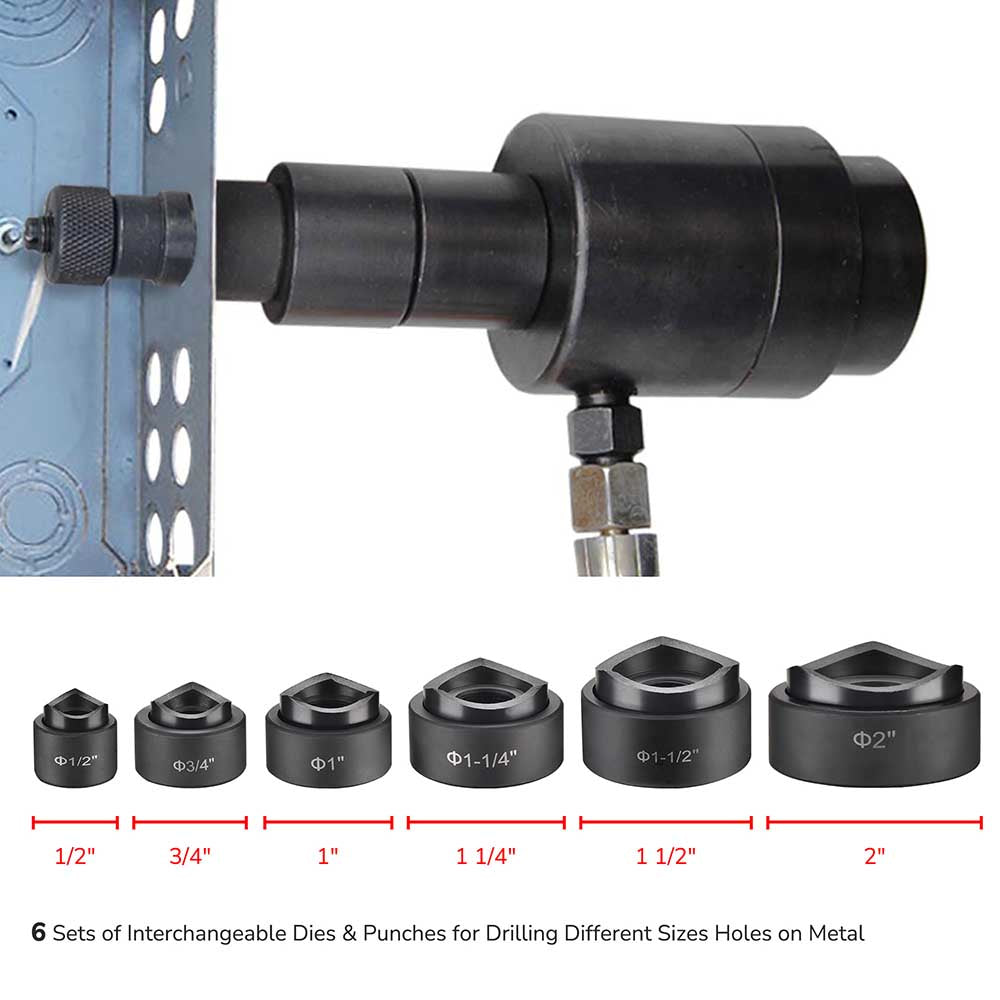

- 6 Dies & Punches Interchangeable to Meet Different Needs

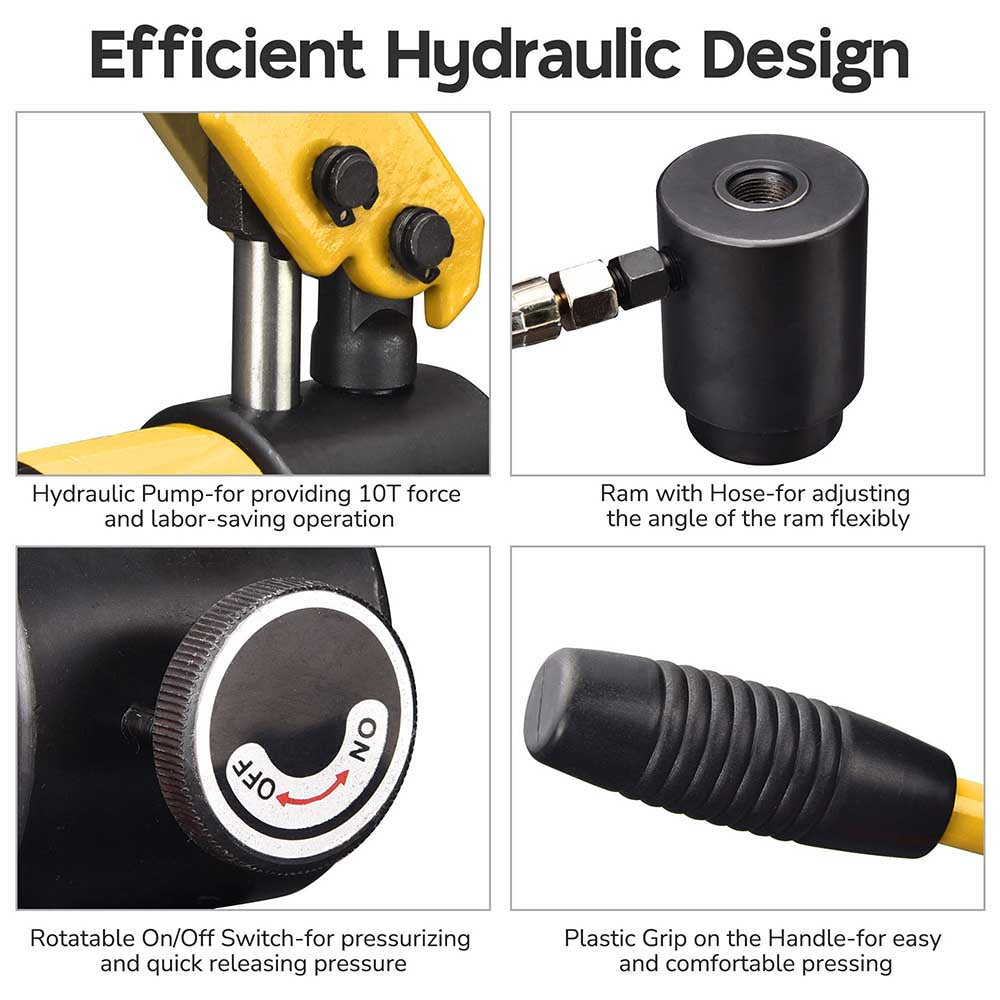

- Efficient Hydraulic Design
- Hydraulic mechanism pump produces 10T strong pressure for providing high punching accuracy and fast punching speed on punching uniform holes, more labor-saving and faster
- Pump with pressure hose for adjusting the angle of the ram flexibly
- 40Cr steel dies and steel pump body for ensuring high strength, sturdiness and durability, stable construction
- Rotatable "on/off " knob on the pump for quick releasing pressure after drilling holes and safety valve for releasing pressure automatically when the pressure reaches the max value
- Anti-skid plastic grip at the end of the handle for easy and comfortable pressing
- Sturdy metal case with handle and double metal locks for convenient and safe storage
- Widely used on installing and repairing wire pipeline, signal lamp and instrument on construction sites, metallurgy, petrol, electronics, electrical appliance, chemical industry, ship and machinery, etc.
Product Details:

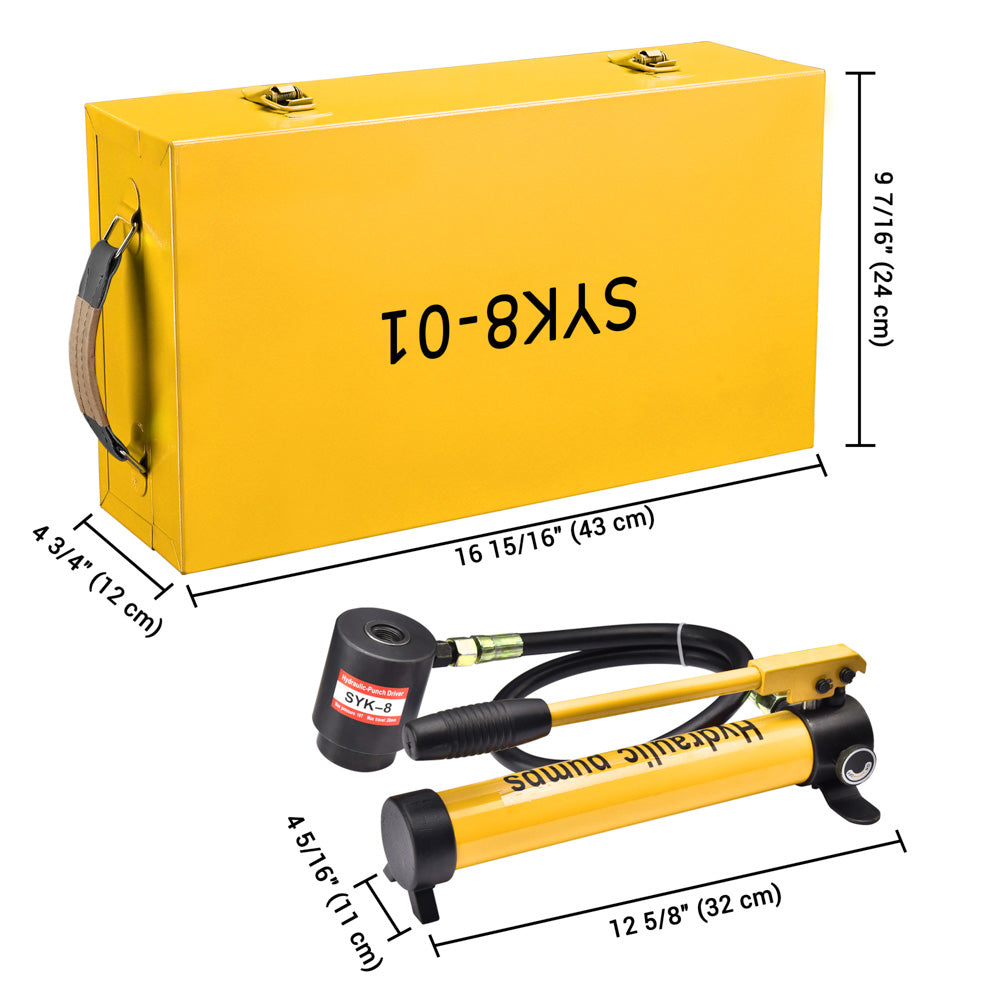

- Pump Dimension(LxWxH): 12 5/8" x 4 5/16" x 4 5/16"
- Case Dimension(LxWxH): 16 15/16" x 9 7/16" x 4 3/4"
- Max Pressure: 10 ton
- Max Thickness for Steel: 3.2 mm ( 11 gauge )
- Max Thickness for Stainless Steel: 2 mm ( 14 gauge )
- Ram with 31" High Pressure Hose
- Piston Shaft : 3.3"L x 0.7"Diam
- 6 x Dies & Punches : 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
- Drilling Hole Size: 7/8" (22.5mm), 1 1/8" (28.3mm), 1 3/8" (34.6mm), 1 11/16" (43.2mm), 1 15/16" (49.6mm), 2 7/16" (61.5mm)
- 2 x Draw Studs: 3.1"L x 0.31"Diam & 3.2"L x 0.3"Diam
- Net Weight: 23.1 Lbs (10.5 kg)
Corresponding Size:
|
Actual Hole Size
|
Dies & Punches Size
|
|
0.885" (22.5mm)
|
1/2"
|
|
1.115" (28.3mm)
|
3/4"
|
|
1.362" (34.6mm)
|
1"
|
|
1.701"(43.2mm)
|
1 1/4"
|
|
1.951"(49.6mm)
|
1 1/2" |
|
2.416"(61.5mm)
|
2"
|

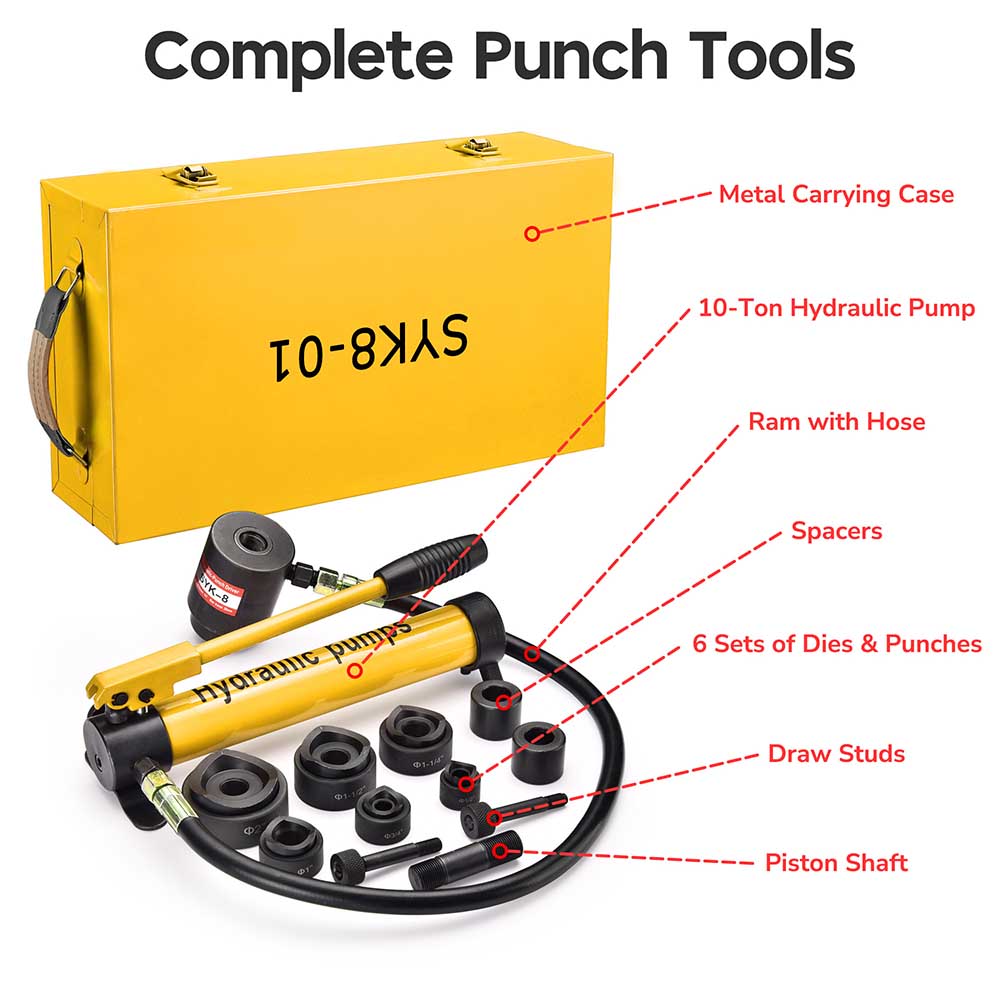

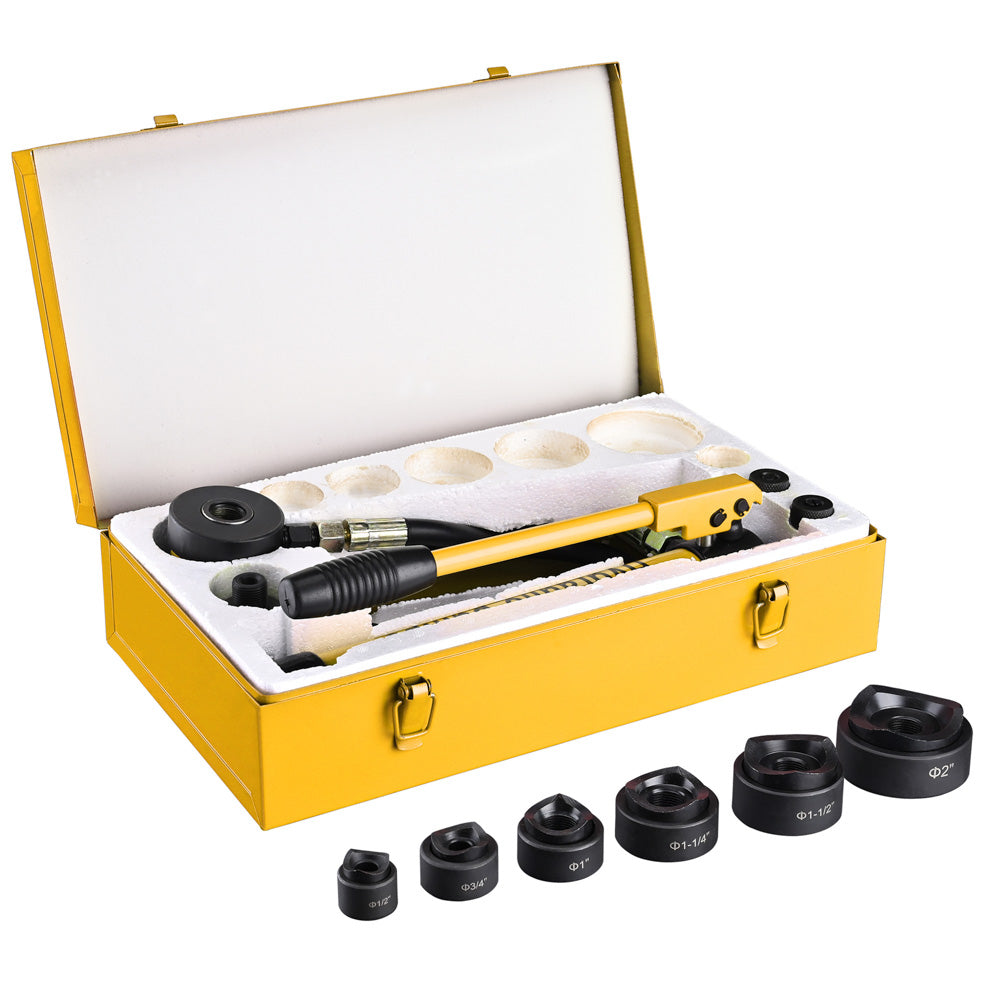

Also In The Box:
- 1 x 10-Ton Pump
- 1 x Ram with Hose
- 6 x Dies & Punches
- 2 x Spacers
- 1 x Piston Shaft
- 2 x Draw Studs
- 1 x Sturdy Metal Carrying Case
- 1 x Manual
