Yescom Pneumatic Grommet Tool Machine Foot Pedal 4000pc #2 Grommets

Yescom Pneumatic Grommet Tool Machine Foot Pedal 4000pc #2 Grommets

| 5.0 Site Review

$389.79

Enroll your businessGet up to 15% OFF after double opt-in.

15% OFF

ON ORDER $149

Shop Now

Size: Pneumatic

Pickup available at LA01

LA01

Pickup available, usually ready in 2 hours

185 N. Sunset Ave
City Of Industry CA 91744
United States

+18888239222

Check this on google map

Arrives by Wed, Jan 1 Ships free

Yescom Pneumatic Grommet Tool Machine Foot Pedal 4000pc #2 Grommets

$389.79

Frequent Bought Together

Yescom Pneumatic Grommet Tool Machine Foot Peda...

$389.79

Yescom #2 Grommet 1000x 3/8" for Semi-Auto, Pne...

$34.79

Yescom Retractable Banner Stand 33" x 79" Base ...

$219.79

Total price: $644.37

Description
Video
Accessory
Product FAQ
Wholesale Inquiry

Description

This Pneumatic Grommet Tool Machine w/ rolling base & Foot Pedal for convenient use. Package comes with 4000pcs #2 grommets.

High Quality:

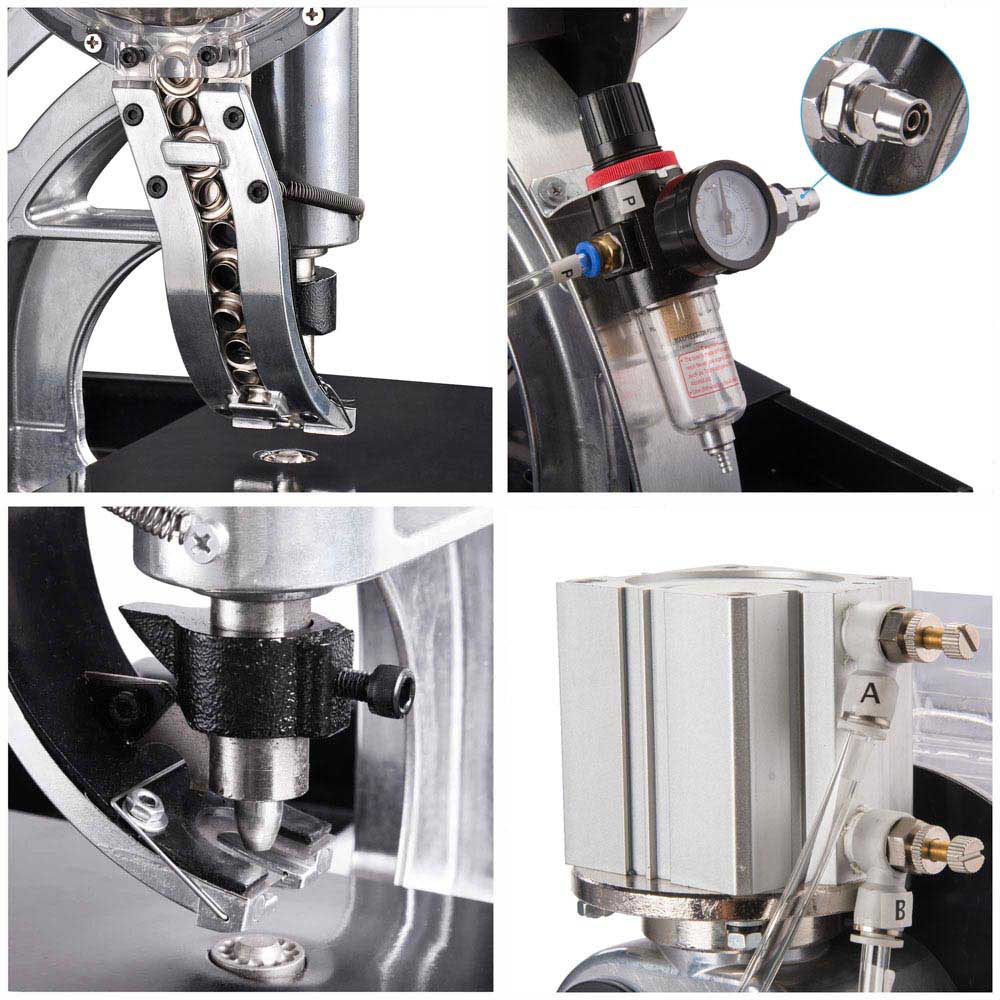

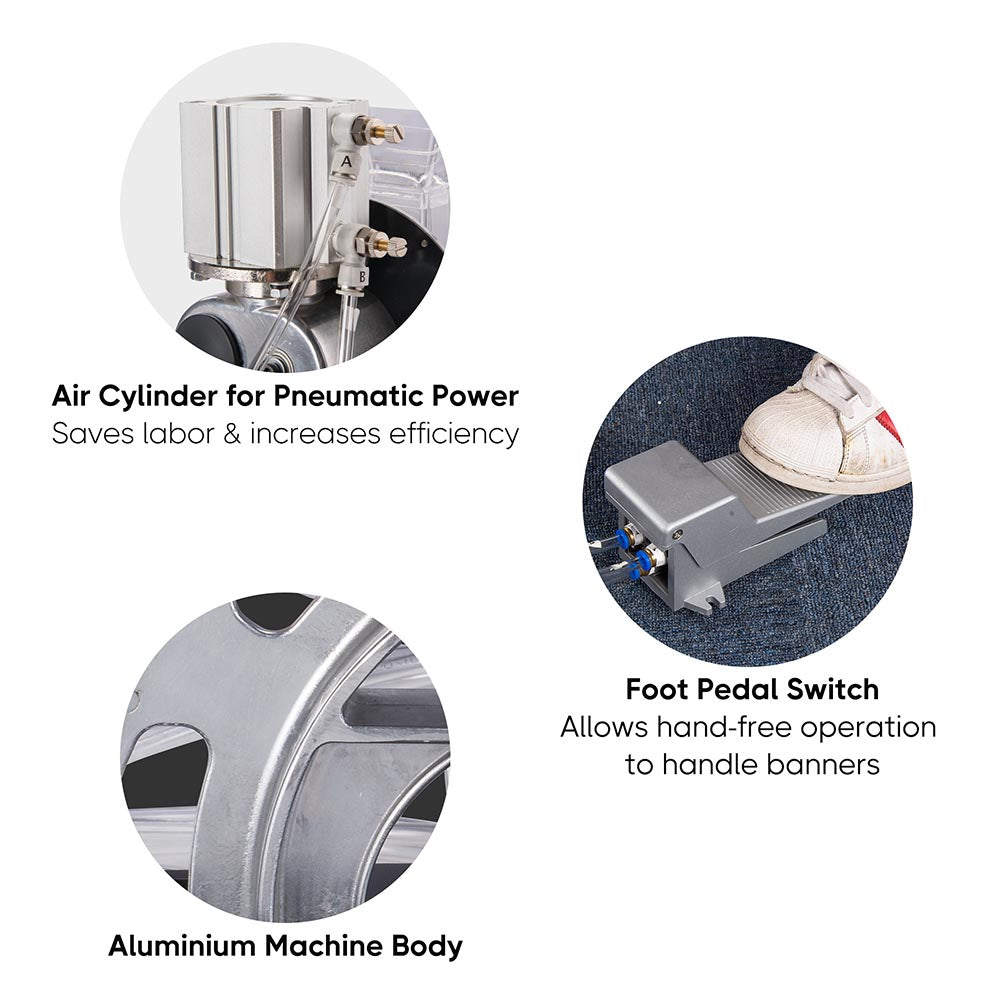

Pneumatic grommet press machine with 4000 pieces #2 nickel grommets, with air cylinder powering & foot pedal switch

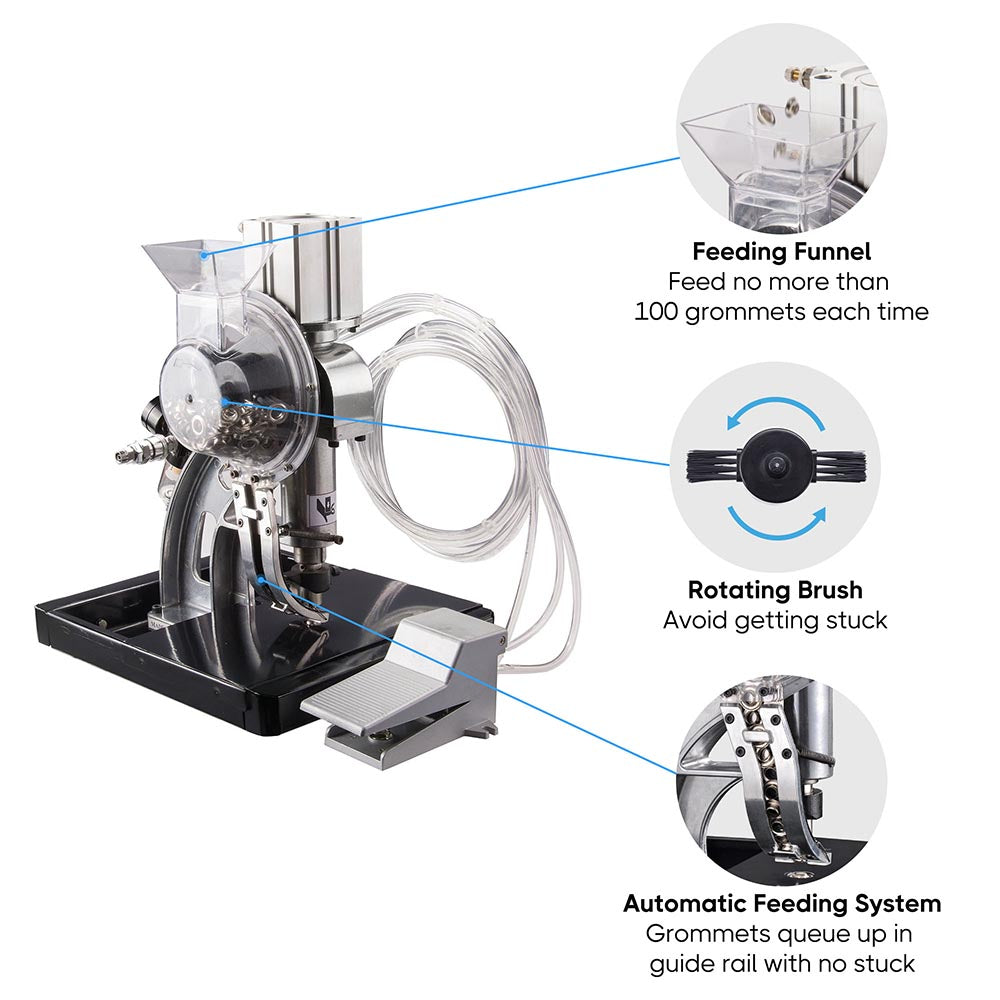

Automatic Feeding System, designed to queue up in guide rail; Stepping on the pedal for rotating brush to avoid getting stuck

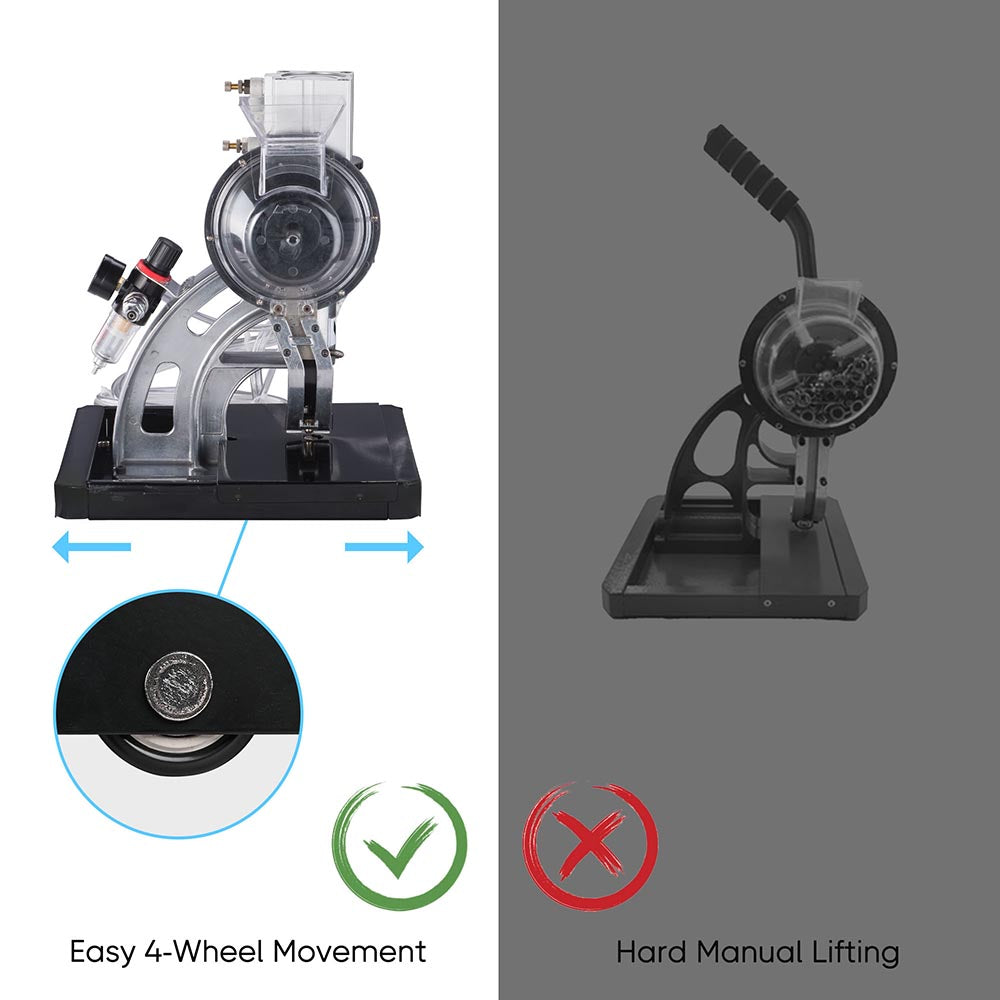

With rolling bottom wheels for moving easily
Aluminium machine body for light weight, anti-corrosion and long lifespan
Ideal for dress makers, arts & crafts, sign shops & manufacturers; For banners, signs, awnings, posters, curtains, digital printing and more

Product Details:

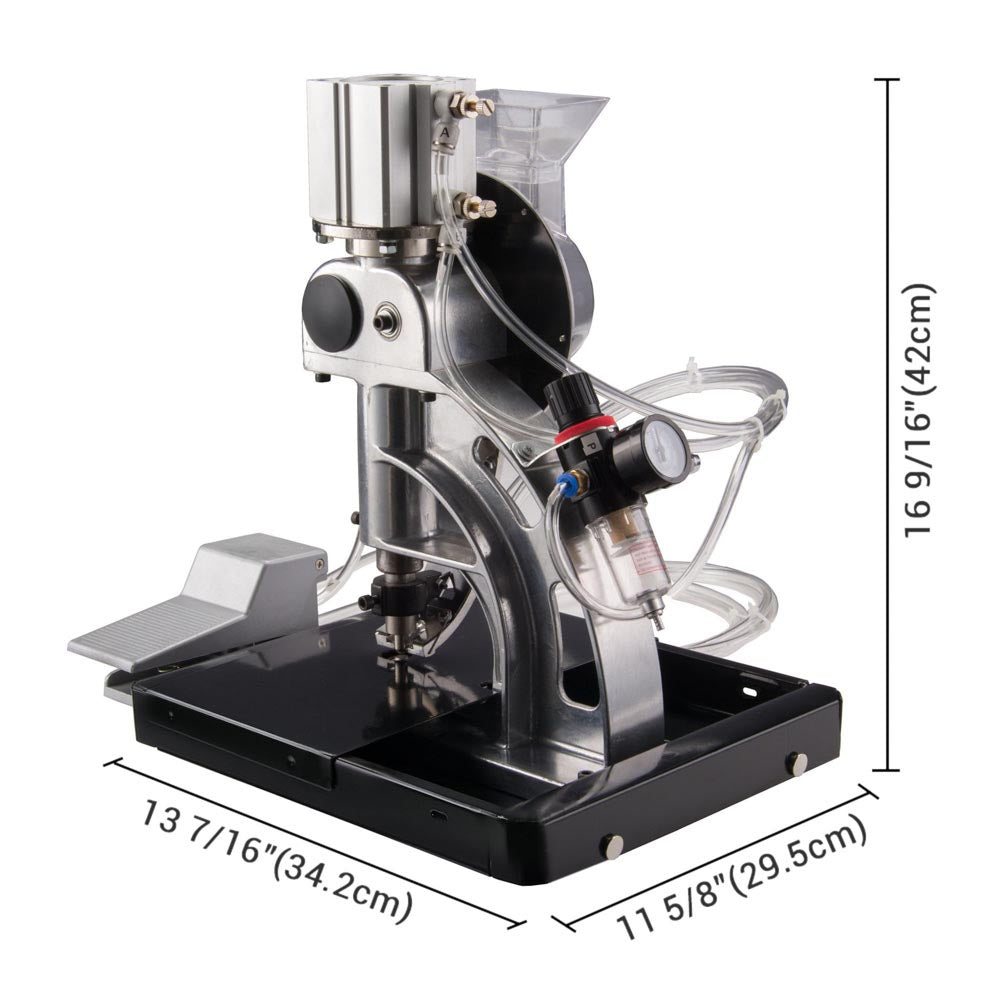

Overall Dimension(LxWxH): 13 7/16" x 11 5/8" x 16 9/16" (34.2 x 29.5 x 42 cm)

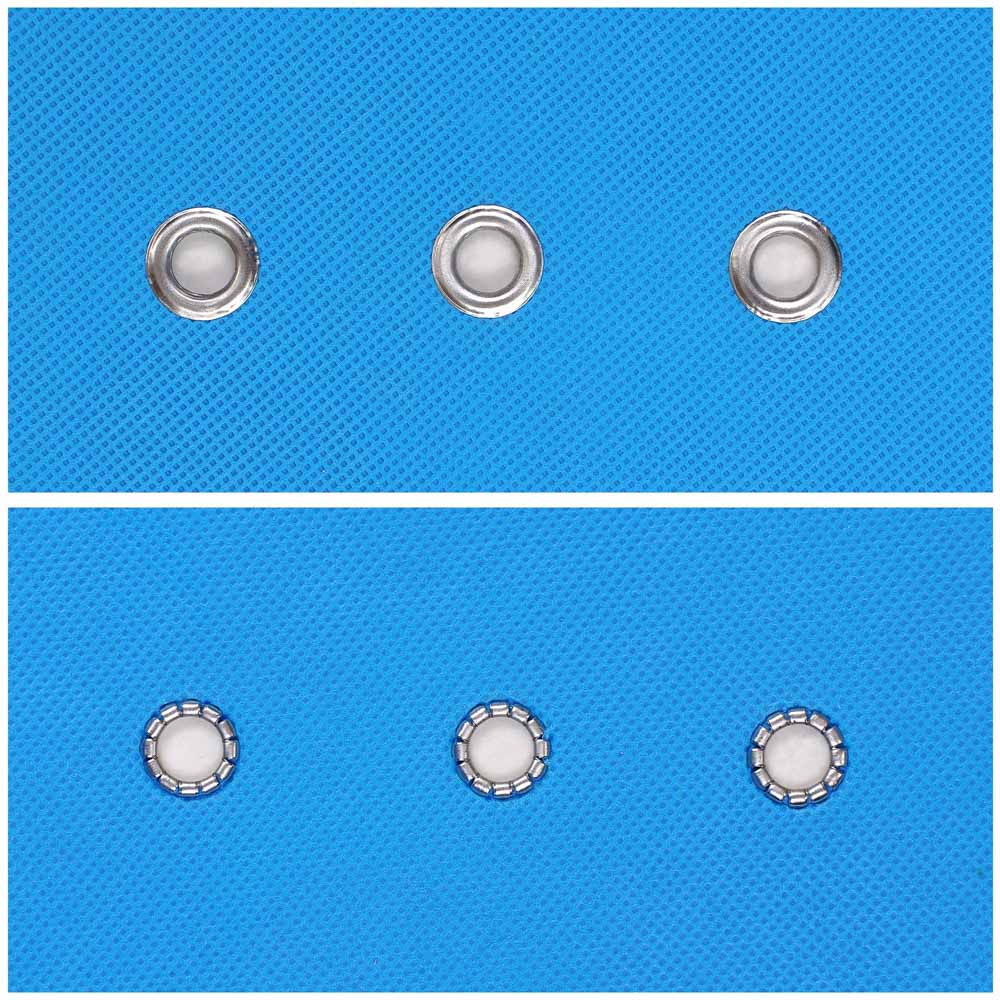

Grommet Type: #2, 3/8" (10 mm), nickel
Suitable Air Pressure: 87 to 135 PSI (6 to 9.3 Bar)
Pressing Frequency: ≤30 Times/Min
Feeding Case Capacity: 100pcs
Main Body Material: Aluminum Alloy
Die Material: Steel
Grommet Material: Metal
Net Weight: 21.8 Lbs (9.9 kg)

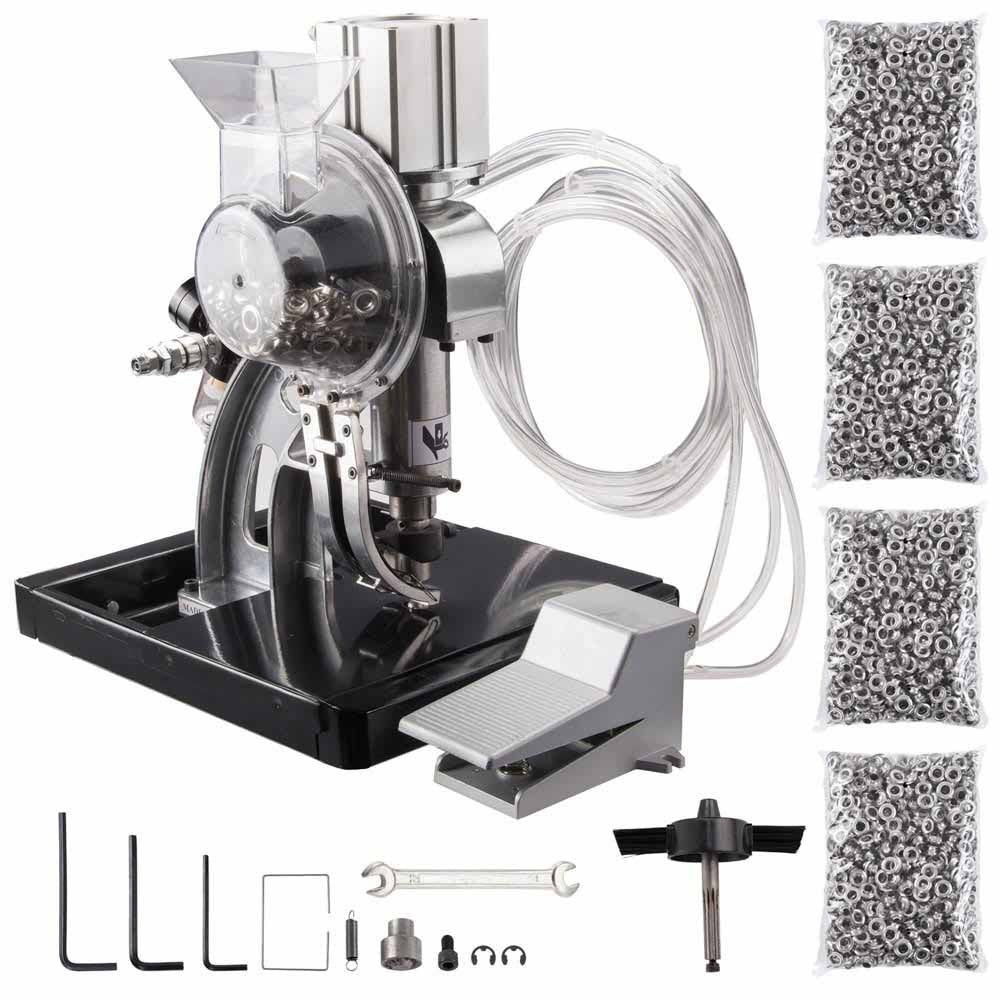

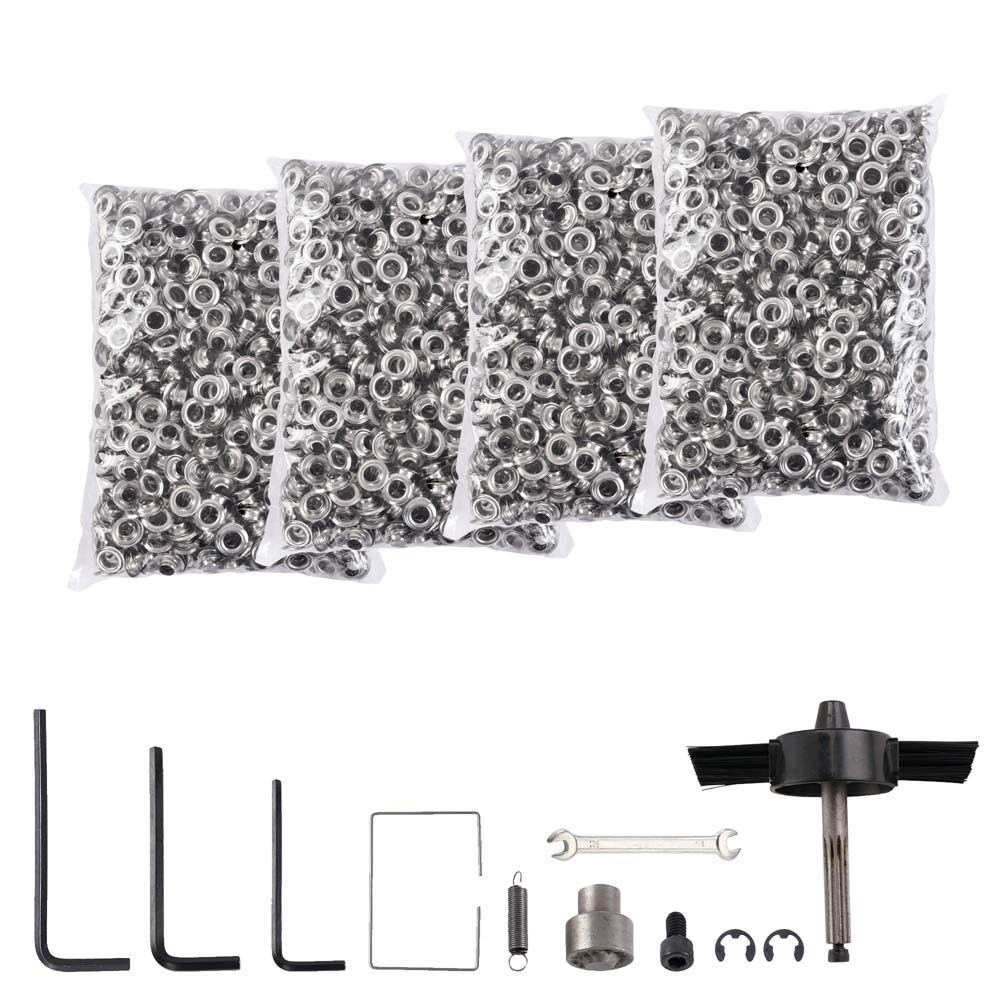

Also In The Box:

1x Press Machine
4000x Nickel Grommets
1 Set of Screws
1x Rotating Brush
1x Feeding Funnel
1x Wrench
1x Tube Connector
1 Set of Tubes
1x Base built-in Roller
1x Foot Pedal
1x Manual

Notice:

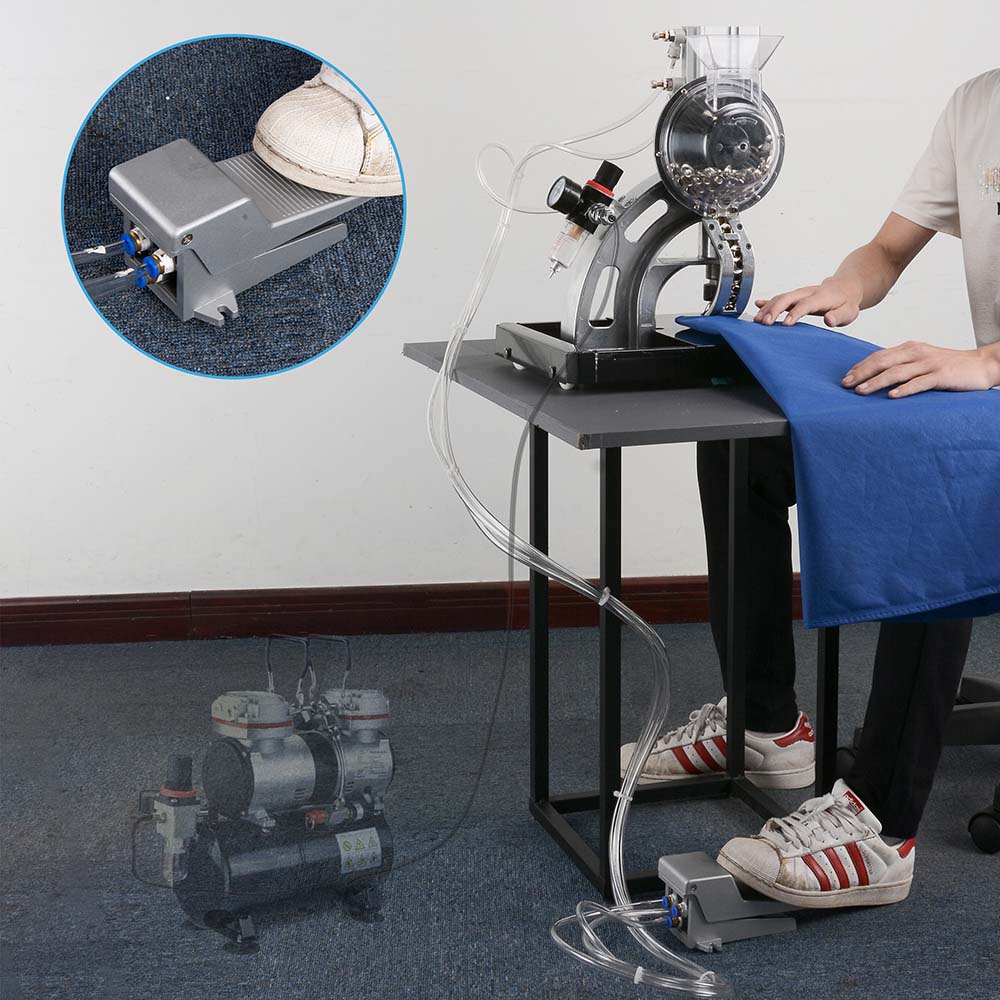

1. It should be worked with an air compressor, which is not included.
2. Feed no more than 100 grommets each time.
3. When the pressure is less than 0.6MPa, the hole cannot be pressed tightly.

Video

There is not a video available for this product.

Accessory

Product FAQ

Grommet Machine: The eyelets can't come out from the eyelet box even eyelet box has enough eyelets

1. Pull the guide rail outward slightly (please note do not put your hand between the top and bottom die), at the same time press the pedal quickly (dot not press the pedal to the end);
2. If it does not work, please check the eyelet box whether it has any sundries or deformation, and then take out sundries or deformation.
3. If there's no sundries when you open the eyelet box, please check the brush if it's damaged.If the brush is damaged, then you need to replace a new brush.

Grommet Machine: The eyelets can't be pressed firmly

Please kindly check the pressure gauge. If the reading of pressure is less than 0.6MPa (6 Bar), then the problem is that the pressure is not high enough. Please kindly wait until the reading of pressure is higher than 0.6MPa (6 Bar).
If you have checked the pressure gauge and confirm it has no issue, but it still has the same problem, please kindly contact our customer service with your order information and issue details. It will help a lot if you can provide some pictures or a short video to show the problem at the same time.

Would this machine be able to punch through banners hem with webbing reinforcement ?

I am afraid that this product would not be able to punch through banners hem with webbing reinforcement. If the material is too thick and too hard to be worn, normally it cannot be punched directly. Please manually open a hole of equal size in the corresponding position of the material, and then punch the hole.

Grommet Machine: Applicable Table of Yescom Grommmets & Grommet machine

https://cloud.yescomusa.com/content/published/api/v1.1/assets/CONTB8A642CFA1A64EFB8B8E4C298D288836/native/KB_25GRM_1077.jpg

Grommet Machine	Model Number of Machine	Applicable Grommets	Model Number of Grommets
25GRM001-GENONE	YES1641	25GME001-0-BRS	YES2531
		25GME001-0-NKL	YES2532
		25GME002-N2-BRS	YES2535
		25GME002-N2-NKL	YES2536
		25GME003-4-BRS	YES2537
		25GME003-4-NKL	YES2538
25GRM002-GENTWO	YES1643	25GME002-N2-BRS	YES2535
25GRM002-GENTWO	YES1643	25GME002-N2-NKL	YES2536
25GRM003-M10MM-11	YES3435	25GME005-M10MM-NKL	YES3887
25GRM004-ATHP8-11.V2	YES4979	25GME004-10MM-BRS	YES3885
25GRM004-ATHP8-11.V2	YES4979	25GME004-10MM-NKL	YES3886
25GRM005-HP4-03.V1	YES3407	25GME001-0-BRS	YES2531
		25GME001-0-NKL	YES2532
		25GME002-N2-BRS	YES2535
		25GME002-N2-NKL	YES2536
		25GME003-4-BRS	YES2537
		25GME003-4-NKL	YES2538
25GRM006-PM1-11.V1	YES3406	25GME004-10MM-BRS	YES3885
25GRM006-PM1-11.V1	YES3406	25GME004-10MM-NKL	YES3886
