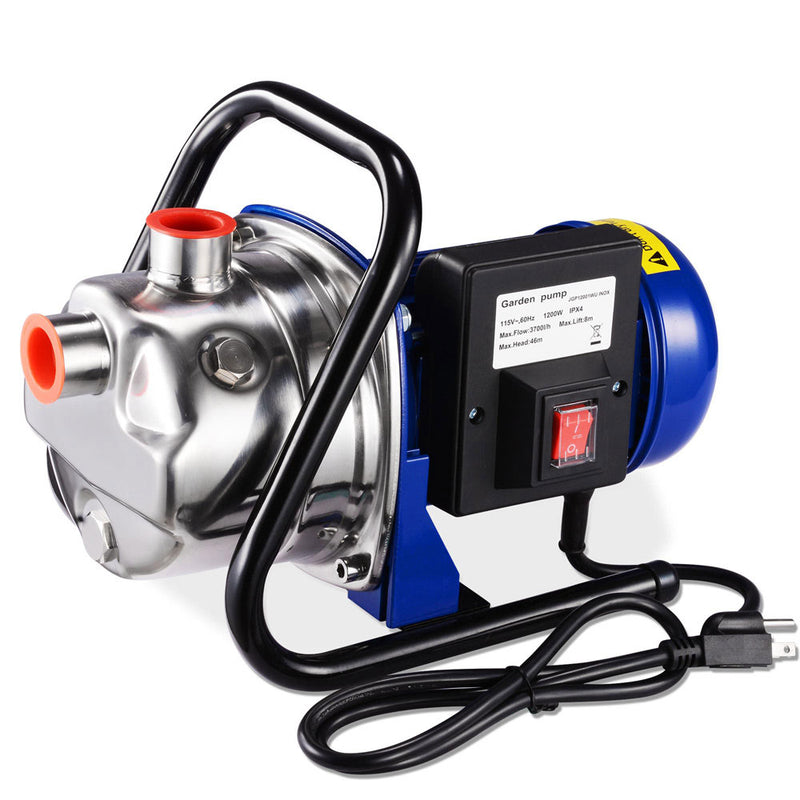

Yescom Water Pump Electric Irrigation Pump Stainless Steel 1.6HP 814gph

Yescom Water Pump Electric Irrigation Pump Stainless Steel 1.6HP 814gph

| 5.0 Site Review

~~$129.99~~ $105.79

Enroll your businessGet up to 15% OFF after double opt-in.

50% OFF

on selected items

Claim

Size: 1.6HP

Pickup available at LA01

LA01

Pickup available, usually ready in 2 hours

185 N. Sunset Ave
City Of Industry CA 91744
United States

+18888239222

Check this on google map

Arrives by Thu, Jan 2 Ships free

Yescom Water Pump Electric Irrigation Pump Stainless Steel 1.6HP 814gph

~~$129.99~~ $105.79

Frequent Bought Together

Yescom Water Pump Electric Irrigation Pump Stai...

~~$129.99~~ $105.79

Byootique Sparkle Travel Cosmetic Bag with Comp...

$19.99

Total price: ~~$149.98~~ $125.78

Description
Video
Accessory
Product FAQ
Wholesale Inquiry

Description

We provide you with 1.6HP Water Pump Electric Sump, which is made of durable 304 stainless steel, which is better than aluminum alloy in terms of anti-corrosion, because the suction level of up to 26 feet is very suitable for small pool or pond pumping and watering. Or solve the backyard flood, it is an ideal drainage or pumping device.

High Quality:

1200W Electric Water Booster Pump, 814GPH (3700L/H) water flow and 67 PSI water pressure to transfer water quickly
Made with a compact lightweight design and convenient handle providing portability, easy to storage
26ft suction level for water draining or pumping and can be used to solve backyard flooding problem
IPX4 water resistance machine and waterproof on/off switch avoid accidental electric shock
304 stainless steel pump head for corrosion-resistance and durability, CE certificated for safety

Product Details:

Overall Dimension: 13 3/8" x 7 1/2" x 9 7/16" (34 x 19 x 24 cm)
Cable Length: 43 5/16" (110 cm)
Pipe Thread Size: G1"
Max. Flow: 814 GPH (3700 L/H)
Max. Head: 151 ft (46 m)
Max. Suction Level: 26 ft (8 m)
Largest Particle Passed: <1/16" (1mm)
Power: 1200W
Voltage: 115V/60Hz
Net Weight: 19 Lbs (8.6 kg)

Also In The Box:

1x Transfer Water Pump
1x Manual

Notice:

Hose and sprinkler are Not included.
Must add some water to the pump head before use, otherwise it will dry run and cause damage.

Video

There is not a video available for this product.

Accessory

Product FAQ

How quiet is the water pump when running?

Normally the water pump is running at about 80db. You can make a few quick adjustments to fix unwanted water pump noise:
1. Slide a sponge, cloth, cleaning pad or other spongy material between the wall or ground and the pump. A pump that touches the wall or ground may vibrate against it and make noise. Inserting a sponge as a barrier can help minimize these loud vibrations.
2. Reduce the speed at which water flows through the pump. The lower the water volume, the less forceful the flow and the quieter the pump will be.
3. Check and clean the inlet of the pump every two to four weeks. Dust and debris get through the pump, which causes the inlet to become clogged over time. This can hinder the flow of water and create noise within the pump. In addition, remove any hair or other obstructions that may be clogging the pump.

Garden Pump: Operation Instruction of Yescom Garden Pump

1. Put the intake pipe into water and immerse the foot valve fully into the water.
2. Connect the power cord to power supply. Then switch on the pump to use. Note: The max head should be within 114 5/6 ft, 144 1/3 ft, 150 11/12 ft according to your model.

Garden Pump: Notice about the installation of Yescom garden pump

1. The semi-stationary and static form of the equipment is designed to be transferred to the house and garden: Spray water and make watering.
2. When the equipment is used for the pound and swimming pool in the garden, the equipment shall be subject to the special setup to avoid the overflow and falling.
3. The equipment shall be installed in the well-ventilated places to avoid the weather effect. In case of indoor operation, please ensure that the floor is equipped with drainage ditch or leakage-proof mechanism.
4. As for the fixed application, please apply four screws to tighten the equipment on the foundation support firmly.

Garden Pump: 10 must-know things about the connection of Yescom garden pump

1. All components of suction pipeline and pressure pipeline shall be installed by professionals.
2. All interfaces which are connected to the suction pipeline shall be sealed by hemp and thick slurry or sealing tape. The leakage will reduce the air exhaust.
3. The interface of metal pipe thread shall be sealed by sealing tape.
4. The inner diameter of suction pipe shall be 25mm at least; The suction pipe shall be kinking resistant and suitable for the vacuum environment.
5. Considering that the increasing pipe length will reduce the transmission capacity, the suction pipeline shall be as short as possible.
6. The suction pipeline shall uplift the pump steadily to avoid any bubble.
7. Please ensure that the suction pipeline has enough water supply;
8. The terminal of suction hose shall be submerged in water all the time.
9. All components of pressure pipeline shall be compressive.
10. The equipment can be firmly connected to the pipeline system (such as, internal water supply in families). In such case, the equipment shall apply the highly flexible hose to connect to the pipeline system to avoid the vibration.

Garden Pump: Safety Instruction about the usage of Yescom garden pump

1. Please don't use the equipment in the room which contains the inflammable and combustible liquid or gas.
2. Please check the plug and power cable before application. When the power cable has been damaged, please disconnect the plug immediately. Please don't use the equipment which has damaged power line.
3. Please don't bend, extrude, pull or drive the power wire to avoid the related dangers caused by line breakage.
4. Please ensure that the power supply can satisfy the connection regulations before the equipment connection.
5. The equipment shall be connected to the socket which has correct installation and grounding.
6.The equipment shall be used within its performance range. Please don't use the equipment which has abnormal switch.
7.The equipment is prohibited to be used for providing water or conveying food.
8. The fuse wire shall serve as the current circuit breaker when the residual current exceeds 30mA.
9. When the equipment is idle, please ensure that the plug has been pulled out. Meanwhile, the equipment has been closed, then, unplug the power supply.
10. Please ensure that the closed equipment will not be started again by mistake.

Garden Pump: Under what conditions we can operate the garden pump

The equipment shall be operated only in the following conditions:
1.The equipment is only connected to the socket which has protective contacts, moreover, which shall be installed, grounded and checked by professional electricians.
2.The power voltage and fuse protection shall satisfy the technical data.
3.The equipment shall be equipped with the protective device for less than 30mA residual current when the equipment is operated in theswimming pool, garden and similar places.
4.In case of outdoor operation, the electrical connection shall be splash-proof; The equipment shall not be operated in water.
5.The extension wire shall have enough conductor cross section; The cable drum shall be unfolded completely.
NoticeThe equipment is only used for industrial water supply, such as,toilet and washing machine shall not be used for the drinking water supply. Electric shock riskPlease don't operate the equipment in the humid environment Risk for equipment damageThe pump shall be filled with water when the new equipment is connected. It is unnecessary to make up additional water during the extension operation. The dry running of equipment is likely to damage the equipment during the unmanned supervision.Don't dry running.

Garden Pump: Filling and suction Instruction

1.Unscrew the pump cover.
2.The pump shall be filled with water completely.
3.Install the filter again and screw the pump cover and sealing elements.
4.When it is necessary to shorten the suction time, please fill in the suction hose.
5.Open the pressure pipeline (faucet or nozzle) to make the air escape during the intake process.
6.Switch on the equipment.
7.Switch off the equipment when water is exhausted evenly.

Garden Pump: The pump fails to operate

1.The power voltage is absent.
Please check the power cable, plug,socket and fuse if it is normal.
2. The motor is overheating.
The overheating motor is mainly caused by excessively high liquid temperature.The pump is equipped with overheat protection mechanism. The equipment generates heat constantly during the operation, please cool it down completely if used for a long time before another use.
3.It is caused by foreign body obstruction?
Please try to clean the filter.
4.Please check if the residual current circuit can start up the breaker.
5.The motor may be defective. Please kindly contact our customer support center.

Garden Pump: The water pump fails to draw water regardless of its operation.

1.Please check if it is caused by the suction inlet obstruction and try to remove blocjage.
2.Please check if the pump has inhaled air and check the joint airtightness.
3.Please check if the pump is blocked by foreign body and try to clean filters. If it still does not work after trying that, please kindly contact our customer support center.

Garden Pump: What if excessively low hydraulic head

1.Please check if the hydraulic head has excessively large height, and try to satisfy the maximum hydraulic head height.
2.Please check if the pressure pipeline has excessively small diameter. Please apply the pressure pipe which has large diameter.
3.Please check if the pressure pipeline is blocked and try to remove the blockage.
4.Please check if it is caused by the suction inlet obstruction and try to clean up the suction inlet.
5.Please check if the pressure pipeline is kinked and straighten the pressure line.
6.Please check if the pressure pipeline is untight and seal the pressure pipeline and screw the threaded connection.

Garden Pump: What is the pump has extremely loud voice during operation

The loud voice may be caused by reason that the pump inhaled air.
Please ensure that there are enough liquid. Please kidnly check the joint airtightness.
